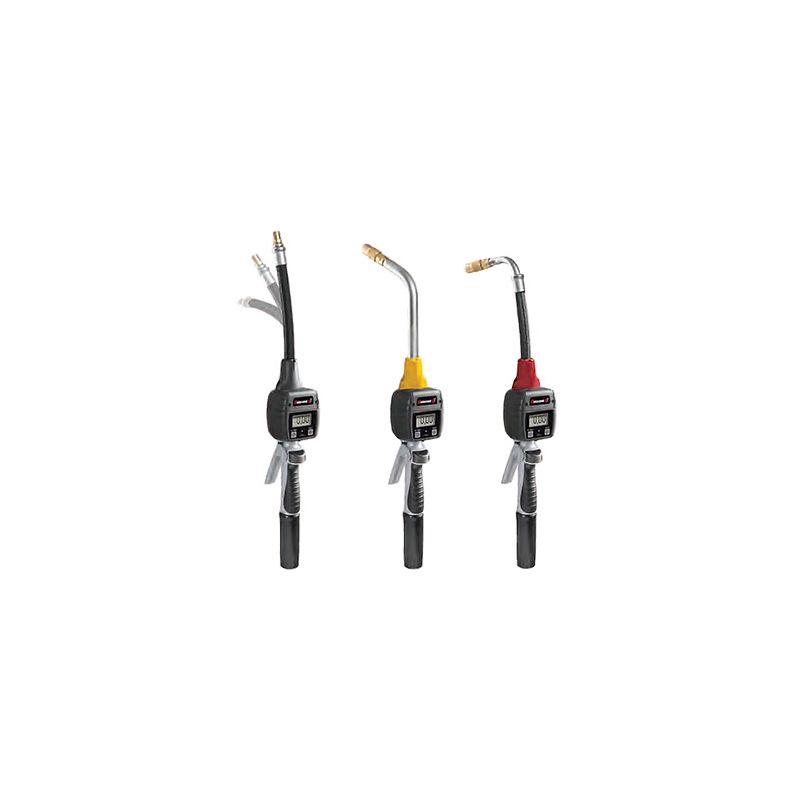

BalCrank 3330-172 Electronic ATF Meter
HANDLE, DR-FLEXM,1/4 TURN MANUAL NARROW
In stock
SKU 6010329
$323.00
The new Digital Register (DR) meter from Balcrank packs a lot of innovative technology into a small package. The DR meter is balanced, lightweight, and ergonomically designed.
Overview
The Balcrank Digital Register (DR) meter control handle is purpose-built for dispensing motor oils, automatic transmission fluid, and antifreeze solutions with precision. Sporting a precision-machined aluminum die-cast fluid chamber, it upholds the tight tolerances needed for consistent accuracy.
To enhance durability and resilience, battery clips are directly mounted onto the Electric Registe Components (ERC), offering protection against environmental factors, impacts, or vibrations. This user-friendly control handle features a comfortable grip, adding to its practicality.
Don’t worry about accidentally killing the battery. The innovative sleep mode functionality kicks in after 30 seconds to conserve battery power, and will reactivate once the ON/RESET button is pushed or when fluid flow is detected.
The flange coupling at the control valve eliminates the need for connection adapters, ensuring seamless integration between the meter and handle. This design choice enhances efficiency, making the DR meter control handle a reliable and convenient tool for precise fluid dispensing in various professional settings.
Features
- Precision robotically machined aluminum die-cast fluid chamber for repeatable accuracy
- Sealed battery compartment; 2 AA batteries
- Low power consumption with auto sleep function
- Trip mode function; can operate as a simple fluid management device.
- Non-resettable totalizer; maintains total volume of meter since day one.
- Ergonomic comfort handle
- Unique 1/4 turn manual tip; fast, simple.
- Flanged coupling; prevents leaks commonly found in competitive meters.
- Swivel protective cover.
- Affordable repair-ability.
Specs
| SKU# | 6010329 |
|---|---|
| Unit of Measure | Batch: Gallons, Quarts, Pints, and Liters (in 0.01 increments) |
| Accuracy | +/- 0.5% of reading (lubricating oils) |
| Flow Range | 0.26-8 gal/min (1-30 l/min) |
| Maximum Pressure | 1,450 psi (100 bar) |
| Swivel Inlet | 1/2" NPT(F) |
| Dispense Nozzle OD | Auto = 0.605"; Manual 1/4 turn for OIL = 0.705"; Manual 1/4 turn for ATF= 0.315"; Verify ID of ATF fill port for compatibility |
| Operating Temperature | 14 ºF to 140 ºF (-10 ºC to 60 ºC) |
| Weight | 4 lb (1.80 kg) |
| Battery | 2 x 1.5 v alkaline "AAA" |
| Compatible Fluids | Oil, transmission fluid, hydraulic fluid, and anti-freeze solutions |
| Wetted Materials | Liquid Crystal Polymer (LCP), aluminum, Buna-N™, zinc plated steel, stainless steel, neodymium, and brass |
