MPU / STD.

The Autostacker Master Power Unit (MPU) is a centralized hydraulic solution engineered to efficiently operate multiple Autostacker parking lifts from a single control point. By consolidating hydraulic power into one system, the MPU eliminates the need for individual power units at each lift, reducing equipment redundancy and simplifying large-scale installations.

Depending on facility requirements, the MPU can support standard or high-speed configurations. The standard unit typically features a 5 HP motor operating on 208–240V single-phase power, while the high-speed version is a 10 HP system designed for faster lifting cycles and specific multi-lift setups, utilizing 208–230/460V three-phase power.

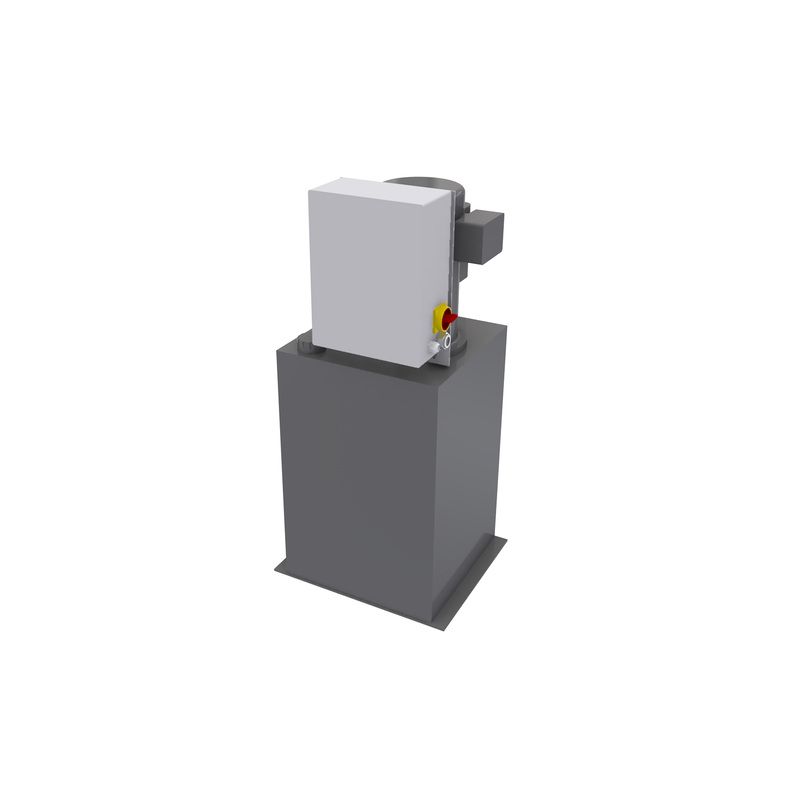

The system is housed in a vertical console that contains the hydraulic pump, fluid reservoir, and integrated safety controls including an emergency stop and push-button operation. While the MPU provides centralized hydraulic pressure, each Autostacker lift retains its own local control box, allowing for independent operation of individual units within a shared system.

For installations exposed to outdoor conditions, an optional weatherproof MPU shed is available to help protect the system.
