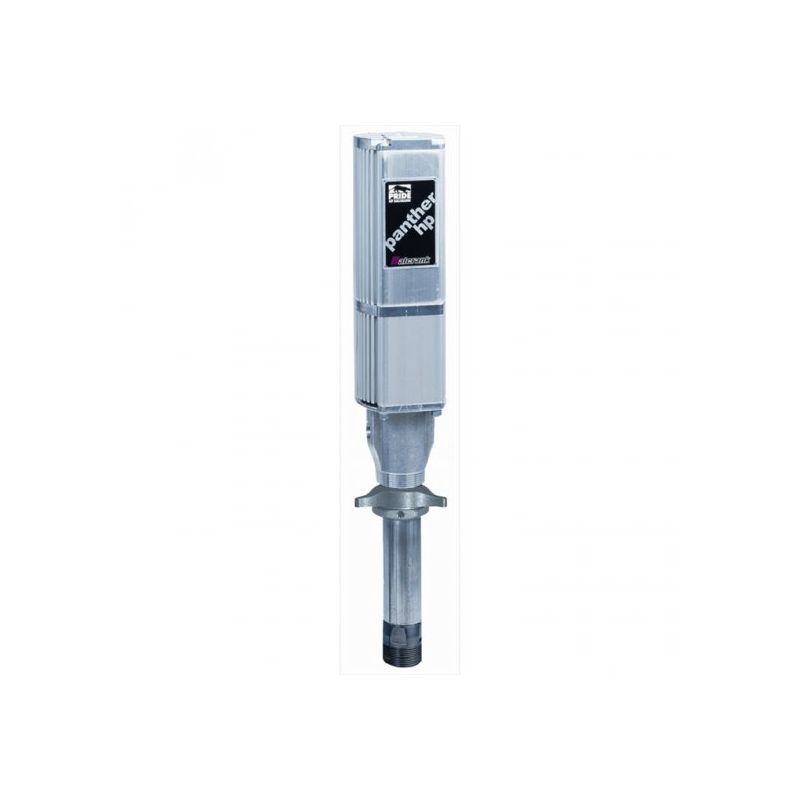

Balcrank • Panther HP • 5:1 Pump
Carbon Steel Stub Pipe Connection w/ Bung Adapter, Air Operated MFR# 1130-021
In stock
SKU 6010335
$827.00
Balcrank’s 5:1 ratio Panther pump is more than ready for simultaneous fluid distribution of up to two dispense points at a distance of up to 700 feet.Overview
The Panther HP 5:1 ratio double-acting pump is designed to deliver exceptional performance and reliability in dispensing lubricating oils and similar products up to SAE 90 viscosity.
As part of the Pride Series, these pumps are engineered with a mechanical air valve and piston design, making them more forgiving in environments with contaminated air. The 5:1 version, known for its medium pressure capabilities, is well-suited for applications requiring higher pressures and longer pumping distances compared to the 3:1 version. This pump operates at lower volume, making it ideal for applications with longer pumping distances and achieving overall flow rates of 4 gallons per minute. The Panther HP 5:1 pump represents a reliable and efficient solution for a range of lubrication needs.
Features
- Pressure relief on Pride Series models - built-in safety feature reduces premature wear of hoses and seals.
- Mechanical air valve - more reliable, no stalling and no icing.
- Designed for lower air consumption - extends compressor life.
- Built in muffler - results in quiet operation and eliminates icing.
- Stainless steel pump rod - reduces corrosion and extends seal life.
- Double acting pump - delivers consistent fluid flow with greater dispensing accuracy.
Specs
| SKU# | 6010334 |
|---|---|
| Ratio | 5:1 |
| Operating Air Pressure Range | 30-150 PSI (1-10 Bar) |
| Pump Delivery w/ SAE 10W30 Oil, 68° F(20°), 100 PSI (7 Bar) Air Pressure and Free Flow | 6 Gal/M (23 L/M) |
| Air Consumption 100 PSI (7 Bar) & 3 Gal/M (11 L/M) | 24.80 SCFM |
| Max Fluid Stall Pressure @ 150 PSI (10 Bar) Air | 760 PSI |
| Cycles Per Gallon | 57 |
| Air Inlet | ¼” NPT (F) |
| Fluid Inlet | 1” NPT (F); 1 ½” NPT (M) |
| Fluid Outlet | ½” NPT (F) |
| Effective Air Piston Diameter | 2 ½” (63.5 mm) |
| Wetted Materials | Carbon Steel, Buna-N™, Stainless Steel, Nickel Plated Steel, Nylon, Ultrathane®, Zinc Plated Steel, Aluminum |
