318VLE
Two-Stage Compressor
In stock
SKU 6010120
$3,676.00

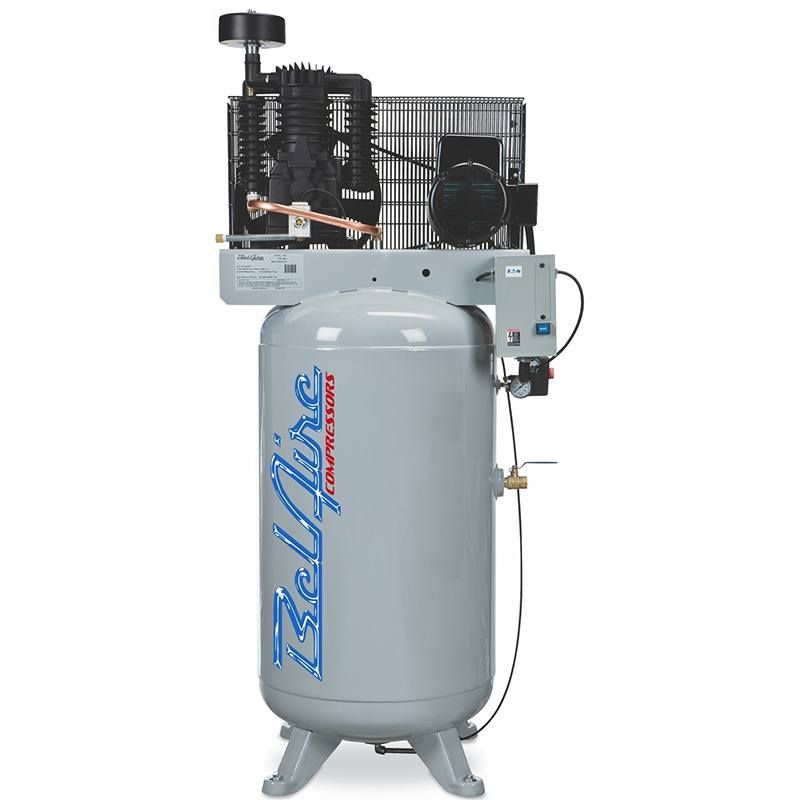

BelAire’s 318VLE compressor comes loaded with everything you’ll need to optimize your work while minimizing down time. The 318VLE also comes with a tank drain and discharge valve.
Overview
BelAire has meticulously crafted their compressor, incorporating cast iron cylinders and steel valve for durability and reliability. The aluminum heads and coolers contribute to top-notch cooling, ensuring optimal performance. Prioritizing safety, this compressor features ASME certified safety valves, and checking the oil level is made easy with the convenient sight glass. The purchase of the 318VLE includes magnetic starters as a standard feature.
As part of BelAire’s “Elite Series”, the 318VLE stands out with additional features such as a low oil switch, automatic tank drain, and a triple-pass pump-mounted aftercooler. Designed to endure the demands of your shop, this compressor enhances efficiency, making it a lasting and valuable addition to your workspace. Trust in the reliability and advanced features of the BelAire 318VLE to meet your compressed air needs.
Features
- Solid Cast Iron Cylinder
- Start-Stop Pressure Switch Control
- ASME Code Tank and Safety Valves
- Fully Enclosed High Flow Belt Guard
- Oil Level Sight Glass
- 100% Factory Tested at Full Pressure
- 208-230 Volt Motors
- Magnetic Starters Included
- 2 Year Bumper to Bumper Warranty
Specs
Motor
| Voltage | 208-230 Volt AC |
|---|---|
| Phase | 1-Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | 60 Amp Breaker |
Engine
| HP | 7.5 |
|---|
Pump
| CFM | 22.3 |
|---|---|
| CFM Rated @ | 100 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 80 Gallons |
|---|---|
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Accessories
| Pressure Gauge | Yes |
|---|---|
| Air Dryer | No |
Overview
| Weight | 491 Pounds |
|---|---|
| Certification | ASME |
| Consumer Warranty | 2 Years |
| Product Length | 39 Inches |
| Product Width | 24 Inches |
| Product Height | 77 Inches |
| Power Type | Electric |
