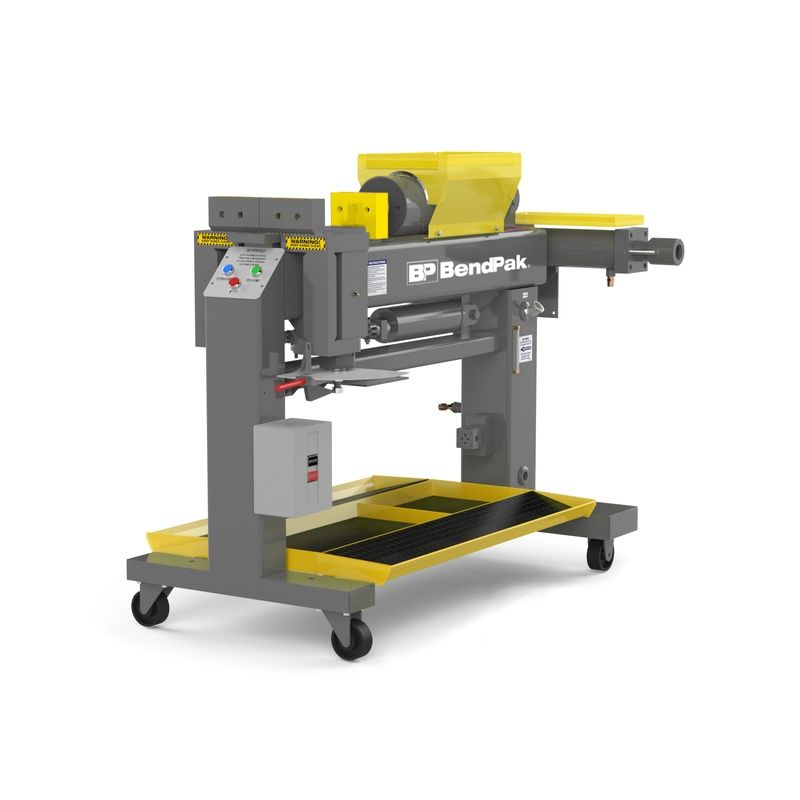

1302BAS

Quick-change bending dies

With the 1302BAS Series you’ll be able to cycle through bending projects quickly by using the simple, twistable locks and quick-change bending dies.

180° bending capacity

The number one reason for this pipe bender’s popularity is the fact that you’ll get the deepest bend possible because of its U-shape. If by chance you need to bend more than 170°, BendPak also offers 180° dies. Their pipe benders will perfectly bend on a 5” radius, never permitting pipe sticking or hang-ups. Their unique relief cut design will keep a uniform bend throughout the entire bend cycle while preventing excessive crimping or deformation from costing you money and wasting your precious time.

3" bending capacity with die kit

BendPak has integrated a 3” bending design into every pipe bender they make. While the design may seem ordinary, it contains a unique step-cut process that they use to craft their die rails. Its outstanding design means better-contained, larger tubing and more uniform bends across the board. Even though they’re called pipe benders, they’re capable of expanding and flaring, as well. BendPak’s die options make it easier than ever to choose the right die for the job.

Long-stroke bending cylinder

BendPak has fitted their pipe benders with an extended-length, 14” top cylinder, and they don’t require the use of pusher block extensions for small-radius die jobs. Additionally, the cylinder can be retracted, offering more clearance for die-changing, as well as the removal of bent tubes.

Clampless swager

A clampless swager comes standard with this BendPak pipe bender. It is capable of putting out more than 30,000 lbs. of force, so your end forming will be fast and extremely precise. Setup couldn’t be easier as you prepare to handle I.D. expansions, O.D. expansions, slip-fits, flares, ball-joints, reductions, and manifold flanges. Quick-release tooling means no old-fashioned vise will be found in the clamp assembly. Each pipe bender is engineered with narrow-hinged collars that drop into position to let the flare tubing ends as close as 3” during bend. The more pressure that gets applied to the clamps, the better their overall grip will become. With this, slippage will never be an issue for you.

Internal segment expander

BendPak’s pipe benders feature a unique internal segment expander which works on I.D. expansions, O.D. expansions, slip-fits, flares, ball-joints, and manifold flanges. They also feature a buttress canister which has a single position setting for all I.D. expansions and can be adjusted for other sizes. A single arbor is used for all tubing sizes 1.5”-3”. Together, the clampless swager and internal expander make end-finishing operations much simpler (e.g., reducing, internal swaging, flares). BendPak’s pipe benders are equipped with a double-ended cylinder for both the clampless swager and segment expander. Stay as comfortable as possible when operating this pipe bender with a single control handle, which operates the cylinder, conveniently placed in the middle.

Electric foot switch

You’ll be able to perform manual bending operations while standing in front of the bending head or up to 4’ away by utilizing an independent remote foot switch. Having the convenience of remote operation is an added plus, especially when you start handling larger tubing. The switches are industrial-grade quality and covered for your protection.
