BendPak

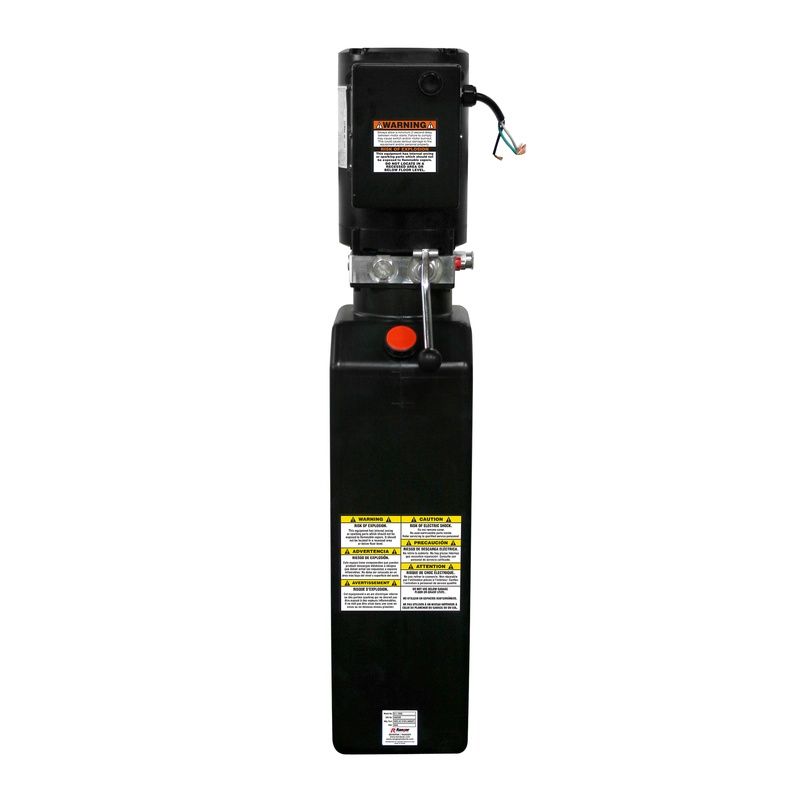

E2.1F3H1
3.6 Gal Reservoir, 2650 PRV, 2.5 HP Motor, 208-230V / 50-60 Hz / 1 Ph, UL/ETL Listed
In stock
SKU 5585285
$650.00
This hydraulic power unit from BendPak has only one purpose: to get your vehicle up in the air, fast. The sturdy 2.5 HP motor pairs with an increased 3.6-gallon tank to provide an additional boost of power. Low-rise car lifts will speed to their max extension.Overview
2.5 HP for Heavier-Duty Lifting
If you need something lifted, odds are Ranger has built a hydraulic power unit that’s up to the task. They take all necessary measures to manufacture units which could be mounted to a wide variety of car lifts, ranging from low-rise scissor lifts to larger two-post lifts and four-post lifts. The specs on this particular hydraulic power pack should really stand out and scream versatility. Ranger has crafted this tank to be a little bigger at 3.6 gallons. Because of this, it can easily handle most lifting applications. Its single-phase 2.5 HP motor runs quietly during each lift, even when servicing heavy vehicles. The 2,650 PSI pressure valve has been intuitively designed so it can keep you, your equipment, and your vehicle safe from any instance of pressure build-up. Essentially, Ranger has delivered an incredibly safe product which has been manufactured with a safety-first mentality, and to top it off it is UL/ETL Certified.
The E2.1F3H1 ends up saving electricity by harnessing the power of gravity so your vehicle can be lowered safely, which also ends up extending the life of your hydraulic power unit while decreasing operating costs. The casing around the motor is not only secure, but also waterproof, so you won’t have to worry about dirt, dust, or any other random air pollutants disrupting car lift operations. Regardless of what time of the year it is, Ranger power units have a safe operating range of -13-175°F, so they can function in virtually every temperature that you can throw at it.
Features
- Pumps feature high mechanical and volumetric efficiency, low noise level
- End head prepared for lift-hold-lower applications using our standard manual lowering valve or solenoid cartridge valves
- Totally enclosed motors are suitable for use in humid environments or dusty, contaminated atmospheres. UL Recognized AC electric motors feature heavy gauge steel frame and base and high-quality ball bearings
- Torque load remains constant throughout the range of operation
- Power up, gravity down function
- Heavy-duty start switches with a high IP-protection class and silver-plated contacts meet tough demands for a long service life
- Cartridge-style relief valves meet tough demands for dependability and life expectancy
- Equipped with black plastic and steel reservoirs
- Vertical mounting
- Equipped with oil level dipstick
- High performance cartridge check valve is standard
- Most premium grade petroleum-based fluids can be used. Optimum operating viscosity range is 15 - 68 cSt
- Minimum recommended temperature is -25ºC (-13ºF)
- Maximum recommended temperature is +80ºC (+175ºF)
- 12-months warranty
Specs
| Reservoir | 3.6 gal |
|---|---|
| PRV | 2,650 |
| HP | 2.5 |
| Cert | UL/ETL |
| Shipping Weight | 60-lbs. (27-kgs.) |
| Shipping Dimensions | 36" x 11" x 15" (914 mm x 279 mm x 368 mm) |
