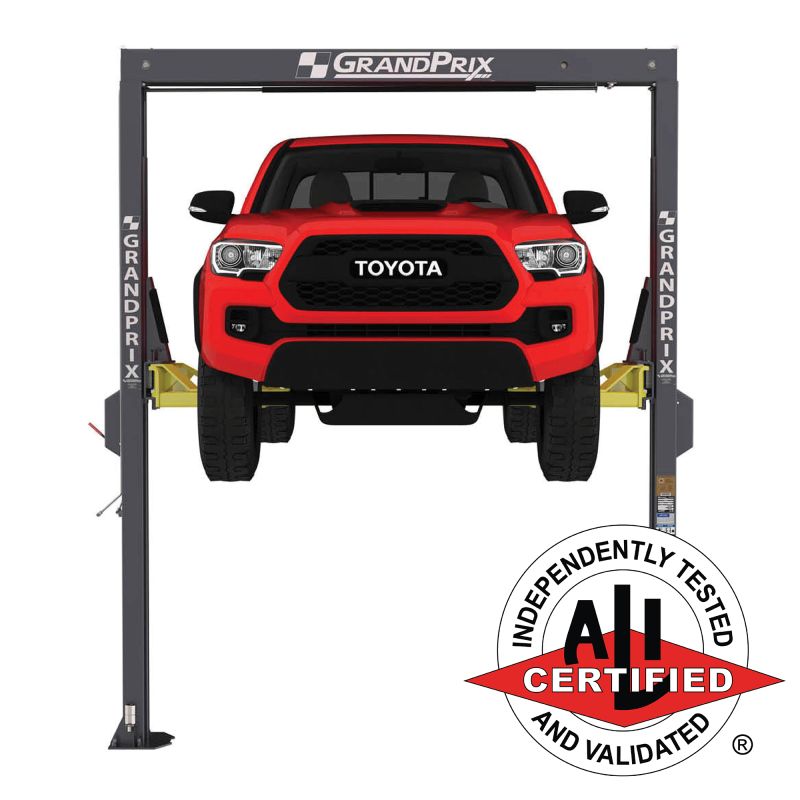

GP-7
GrandPrix Series 2-Post Lift / 7,000-lb. Capacity / 150” Overall Height
In stock
SKU 5175992
$5,145.00
Was
$5,695.00
BendPak’s standard height GP-7 is designed for garages with 13’ ceilings and can deliver a full 78” max rise. While the dimensions are similar to other two-post lifts, what sets the GP-7 apart is the fact that it is sporting a much slimmer profile. This design makes it perfect for garages with narrow spaces.
Essential Accessories
Overview
Full Height and Slim Posts Save Space
Unleash the power of the GP-7 from BendPak – a compact yet mighty two-post lift designed for optimal performance, safety, and versatility. Boasting a small footprint, rapid lifting times, and an impressive lifting capacity of 7,000 lbs., this lift is engineered for efficiency.
More lift, less steel
The GP-7’s super-slim columns effortlessly lift vehicles to a maximum height of 78”, thanks to its innovative hydraulic cylinder running through the overhead crossbar. Dual aircraft lifting cables work in harmony, providing lifting force from two sources, reducing downtime, and ensuring a swift turnaround. What this means to you is that you’ll enjoy higher profits and your technicians will be happier.
Four lifting cables
Designed for both commercial shops and home garages with high ceilings, the GP-7’s thin posts are ideal for lifting low-clearance cars and light trucks, while other lifts handle heavy-duty business. Safety takes center stage with the exclusive quad cable system, offering next-level security – even if two cables were to break, the lift remains unfazed.
Single overhead cylinder
Worried about safety? Rest assured, the GP-7 exceeds industry standards with four lifting cables, providing an extra layer of security compared to most certified four-post lifts. The lift’s versatile arms offer both symmetric and asymmetric loading, giving you the flexibility to choose based on door clearance or available space.
Bi-Metric™ arms
When you work with BendPak’s GP-7, you’re choosing a lift which excels when it comes to precision, safety, and versatility. Elevate your garage game and empower your technicians with this marvel of engineering!
Features
- 7,000-lb lifting capacity
- Telescoping Low-Pro™ arms for sports cars
- Bi-metric asymmetric & symmetric arm configuration
- Lowered arm tube supports
- Automatic arm restraints
- Single release-point operation
- Taller lift carriages
- Automatic safety locks
- Single hidden hydraulic cylinder
- (2) redundant safety cables
- Multiple lock positions
Specs
| SKU# | 5175992 |
|---|---|
| Lifting Capacity | 7,000 lbs. (3,175 kg) |
| *Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| *Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| A - Rise | 74" (1,880 mm) |
| B - Rise + Pad Only | 78" (1,981 mm) |
| C - Rise + Pad + 63 mm Adapter | 86.5" (2,197 mm) |
| D - Min. Height + Pad | 4.5" (114 mm) |
| E - Height Overall | 150" (3,810 mm) |
| F - Width Overall | 125" (3,175 mm) |
| G - Outside Columns | 119.5" (3,035 mm) |
| H - Inside Columns | 110" (2,794 mm) |
| I - Drive-Thru Clearance | 89.5" (2,273 mm) |
| J - Floor To Overhead Switch | 140" (3,556 mm) |
| K - Front Arm Reach: (MIN) | 26" (660 mm) |
| K - Front Arm Reach: (MAX) | 42" (1,067 mm) |
| L - Rear Arm Reach: (MIN) | 28" (711 mm) |
| L - Rear Arm Reach: (MAX) | 47.5" (1,207 mm) |
| Max Load Per Arm | 1,750 lbs. (794 kg) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
| Shipping Weight | 1,558-lbs. (706.7 kg) |
| Shipping Dimensions | 149'' x 24'' x 34'' (3,784 mm x 609 mm x 863 mm) |
| Time to Full Rise | 55 seconds |
