HD-7P
7,000-lb. Capacity / Narrow Car Lift / High Rise
In stock
SKU 5175510
$6,595.00

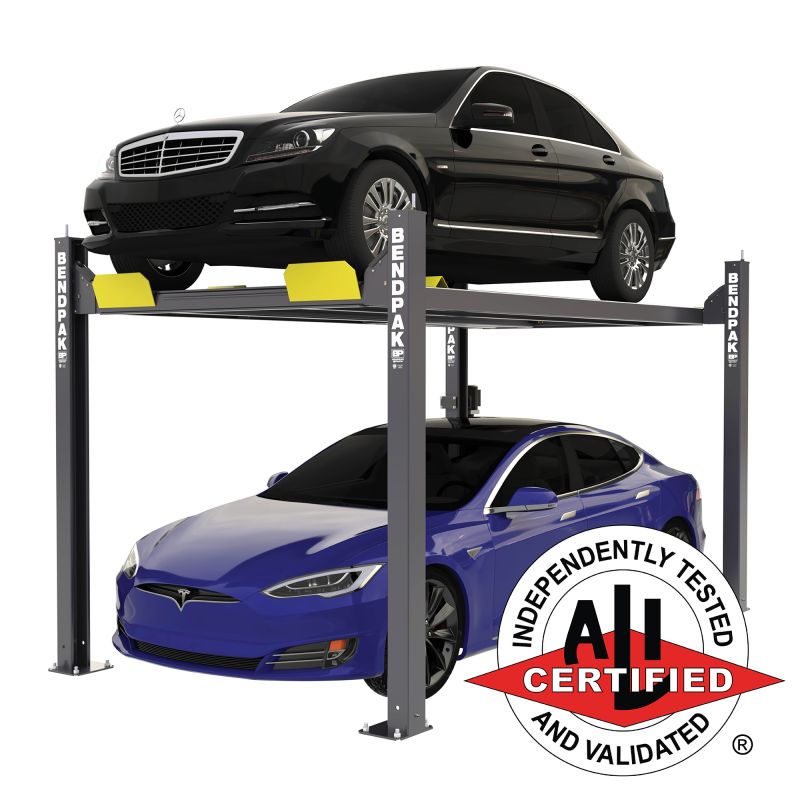

The HD-7P from BendPak is a narrow-configuration four-post lift. This high-quality lift offers complete convenience. It also is capable of handling up to 7,000 lbs. The HD-7P manages to maintain an open, fresh appearance in garages with plenty of space.
Essential Accessories
Overview
HD-7P: Perfect for Tight Spaces
The HD-7P is unique in that it does not require a special foundation, nor does it involve complicated installation procedures. It is simply the perfect service lift for shops or garages with limited floor space. This four-post lift is about the size of a typical parking space and fits nicely as a residential or commercial parking lift. BendPak gives you the versatility so you can use the lift in whatever way best suits your needs.
Get the most out of smaller spaces and compact vehicles with BendPak’s HD-7P. This slim lift will shave 10.5” off the overall width of a standard-size model, which makes for slightly narrower space between the columns too. If you want a 7,000 lb. capacity four-post lift but can’t sacrifice the previous inches taken up by the wider HD-7W, then this is the car lift for you. Store classic cars, racers and compact vehicles in ultimate safety.
Dependable design
Four pro-grade steel lifting wire ropes and a single hydraulic cylinder mounted underneath the runway make this lift the one of the most durable, maintenance-free lifting on the market.
Dual-hub wire rope sheaves
BendPak has over-engineered their designs for a few reasons. For one, it reduces stress and fatigue on the axles, sheaves and wire rope. They also insist on using dual-hub wire rope sheaves when appropriate because they ensure that they will put out a safer, high-quality product. You will have total peace of mind when using the HD-7P.
Multi-level locking positions
Every BendPak four-post lift is equipped with multiple lock positions of various heights. Technicians who are taller than most will appreciate the extra room to do their jobs. And pneumatic push-button controls will simultaneously release all four independent safety locks.
Electric-hydraulic power system
BendPak has incorporated maintenance-free electric-hydraulic power systems into every lift for maximum dependability. All controls are located conveniently within close reach to the operator.
Large base plates
10” x 12” base plates provide a solid foundation for the HD-7P. Your four-post lift will be stable and secure for as long as you own it.
Caster kit
BendPak has released an optional 4-piece caster kit which makes the lift portable, with or without a car situated on the raised platform.
Integrated design
BendPak has designed the HD-7P to have the wire ropes, airlines, safety latches, and sheaves completely enclosed within the car lift columns. This design feature further increases both convenience and overall safety.
Low-deck runways
The low, 4.5” high runways on this four-post lift are made to accommodate low-bodied sports and race cars, as well as mid-size sedans, light trucks and virtually any vehicle under 7,000 lbs.
Longer approach ramps
The approach ramps were designed a bit longer to help when loading low ground-clearance vehicles. It’s small, but makes a big difference.
Automatic safety locks
Aircraft-quality stainless steel and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For additional safety, there is a secondary lock system that acts as a slack-cable device that engages in the event of wire rope failure. It is extremely unlikely, but they went the extra mile anyways.
Features
- 7,000-lb. maximum lifting capacity
- High lift with short runways
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- High-speed lifting
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Push-button pneumatic safety release
- Optional 4,500-lb. capacity rolling jack available (Model RJ-45)
Specs
| Style | Floorplate |
|---|---|
| SKU# | 5175510 |
| Lifting Capacity | 7,000 lbs. (3,175 kg) |
| *Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| *Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| A - Min. Runway Height | 4.5" (114 mm) |
| B - Max. Rise | 82" (2,083 mm)) |
| C - Max. Lifting Height | 86.5" (2,197 mm) |
| D - Overall Width | 100.25" (2,546 mm) |
| E - Outside Length | 174" (4,420 mm) |
| F - Overall Length | 200" (5,080 mm) |
| G - Height of Columns | 100" (2,540 mm) |
| H - Width Between Columns | 90.25" (2,292 mm) |
| I - Drive-Thru Clearance | 76.5" (1,943 mm) |
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 164" (4,166 mm) |
| L - Width Between Runways | 37.5" (953 mm) or 44.375" (1,127 mm) |
| M - Runway Centerline | 56.5" (1,435 mm) or 63.375" (1,610 mm) |
| N - Outside Edge of Runways | 75.5" (1,918 mm) or 82.375" (2,092 mm) |
| Rated Capacity | 115" (2,921 mm) |
| 75% Capacity | 100" (2,540 mm) |
| 50% Capacity | 85" (2,159 mm) |
| 25% Capacity | 70" (1,778 mm) |
| Locking Positions | 15 |
| Lock Spacing | Every 4" (102 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
| Shipping Weight | 1,794-lbs. (813.8 kg) |
| Shipping Dimensions | 166'' x 22'' x 42'' (4,203 mm x 559 mm x 1,066 mm) |
| Time to Full Rise | 35 seconds |
