HD-9ST
9,000-lb. Capacity / Four-Post Lift / Narrow Width
In stock
SKU 5175860
$5,995.00

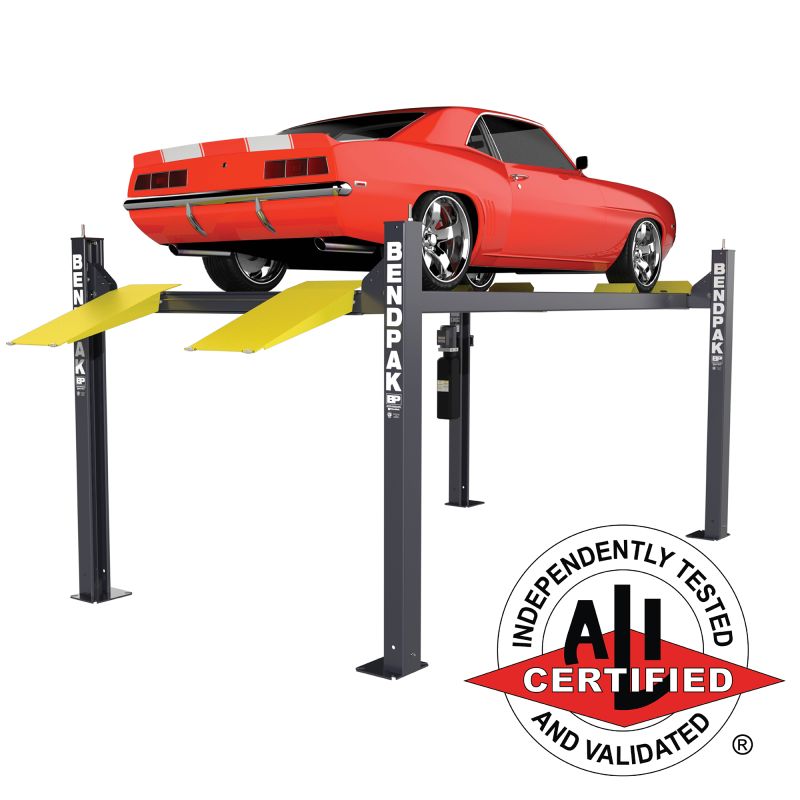

The HD-9ST is a narrow-width four-post lift with a 9,000 lb. weight capacity. It still offers the same power and safety that you’d come to expect from the HD-9, just in a smaller package.
Essential Accessories
Overview
A Slim, Safe and Certified Lift
Some garages are a bit too cozy for a standard-width four-post lift. There needs to be a smaller-footprint lift that maintains the same functionality of a regular lift. And now there is. The HD-9ST from BendPak is ideal for small garages and spaces that are essentially at capacity. Its narrow width is designed for spaces and service bays that need to fit more in less space.
If you have more compact vehicles, this slim lift is the lift for you. Since it also features an open center design, this parking lift also doubles as a maintenance lift. This four-post lift is perfect for DIYs with a limited amount of space. Not only does this lift follow a narrow design, it also has columns that are only 88” high. The generous amount of underside clearance ensures that full-grown individuals over 6-feet tall will have no issue performing oil changes, comfortably adjusting transmission jacks and removing and replacing exhaust systems.
Despite the fact that this lift is a bit smaller than the others, it’s not weaker than the other models. This lift is ALI certified and is used in shop all around the world. For many professionals, it’s their lift of choice because of all the space you’ll have In their garages that you could use for more tools and equipment.
Features
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Two different ramp lengths to choose from
- Narrow width for space efficiency
- Freestanding design
- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Specs
| Style | Floorplate |
|---|---|
| SKU# | 5175860 |
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A - Min. Runway Height | 4.5" (114 mm) |
| B - Max. Rise | 70" (1,778 mm) |
| C - Max. Lifting Height | 74.5" (1,892 mm) |
| D - Overall Width | 100.25" (2,800 mm) |
| E - Outside Length | 174" (4,420 mm) |
| F - Overall Length | 200" (5,080 mm) |
| G - Height of Columns | 88" (2,235 mm) |
| H - Width Between Columns | 89.75" (2,280 mm) |
| I - Drive-Thru Clearance | 76.5" (1,943 mm) |
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 164" (4,166 mm) |
| L - Width Between Runways | 37.5" (953 mm) |
| M - Runway Centerline | 56.5" (1,435 mm) |
| N - Outside Edge of Runways | 75.5" (1,918 mm) |
| Rated Capacity | 115" (2,921 mm) |
| 75% Capacity | 100" (2,540 mm) |
| 50% Capacity | 85" (2,159 mm) |
| 25% Capacity | 70" (1,778 mm) |
| Locking Positions | 12 |
| Lock Spacing | Every 4" (102 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
| Shipping Weight | 1,682 lbs. (762.9 kg) |
| Shipping Dimensions | 166" x 22" x 42" (4,203 mm x 558 mm x 1,066 mm) |
