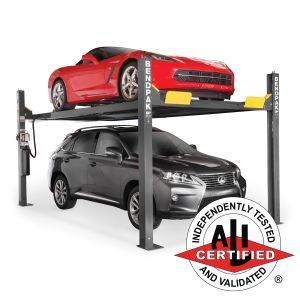

HD-9XW
9,000-lb. Capacity / Four-Post Lift / Standard Width / High Lift
In stock
SKU 5175863
$6,495.00
Four-Post lifts are great, but sometimes they can be inconvenient for certain people, like a tall mechanic for instance. The HD-9XW from BendPak is a great choice for those tall mechanics. Raise up to 9,000 lbs. 82” in the air with the HD-9XW!Essential Accessories
Overview
The Four-Post Lift with Standard Width and Extra Height
The HD-9XW is perfect for garages with an abundance of ceiling space, so high-rise vehicles can take advantage of the lower level. Unlike other narrower lifts, this model can comfortably hold wide-body trucks and SUVs without you having to worry about unintentionally damaging your vehicle by scratching up the mirrors or doors. Tall mechanics will love the 82” of rise that this lift offers as they get to work underneath. There is also more room to park high-clearance trucks and SUVs. No one wants to buy a lift only to find out far too late that your vehicle won’t fit underneath it.
This lift features Dual-hub cable sheaves at no extra cost to you. They are expensive to manufacture, but it’s necessary if you want to prevent accidents. For example, the dual-hub sheaves will prevent axles, sheaves, and cables from burning out before they should.
To make the lift even safer, BendPak has installed four lifting cables that are made of superior-grade stainless steel to each lift in the HD-9 Series. Each individual cable is rated to handle 14,000 lbs., which gives their combined rating over 640% of the total capacity. The cables make the lift significantly safer and are hidden within the post columns so the lift can retain its sleek design.
The HD-9XW is one of BendPak’s most versatile and user-friendly lifts out there. Great for DIY’ers and shop owners. The HD-9XW is the perfect choice for anyone just looking for vehicle storage. The lift is also certified according to the ANSI/ALI ALCTV-2011 standard. What that means for you is that you will not find a lift with a higher safety rating than that.
*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2011 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
Features
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Freestanding design
- High-rise
- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric-hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles available
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Specs
| SKU# | 5175863 |
|---|---|
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A - Min. Runway Height | 4.5" (114 mm) |
| B - Max. Rise | 82" (2,083 mm) |
| C - Max. Lifting Height | 86.5" (2,197 mm) |
| D - Overall Width | 110.25" (2,800 mm) |
| E - Outside Length | 198" (5,029 mm) |
| F - Overall Length | 224" (5,690 mm) |
| G - Height of Columns | 100" (2,540 mm) |
| H - Width Between Columns | 100.25" (2,546 mm) |
| I - Drive-Thru Clearance | 86.5" (2,197 mm) |
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 188" (4,775 mm) |
| L - Width Between Runways | 37.5" (953 mm) or 44.375" (1,127 mm) |
| M - Runway Centerline | 56.5" (1,435 mm) or 63.375" (1,610 mm) |
| N - Outside Edge of Runways | 75.5" (1,918 mm) or 82.375" (2,092 mm) |
| Rated Capacity | 135" (3,429 mm) |
| 75% Capacity | 115" (2,921 mm) |
| 50% Capacity | 95" (2,413 mm) |
| 25% Capacity | 80" (2,032 mm) |
| Locking Positions | 15 |
| Lock Spacing | Every 4" (102 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
| Shipping Weight | 1,802-lbs. (817.6 kg) |
| Shipping Dimensions | 188'' x 22'' x 40'' (4,775 mm x 558 mm x 1,016 mm) |
| Time to Full Rise | 50 seconds |
