P9000 Series Arm Kit

Heavier-Duty Low-Rise Lift Arm Kit

With the 6000AK you’ll be able to greatly increase your low-rise lift capabilities. This arm has been designed to fit BendPak’s P-9000LT and P-9000LTF low-rise pit lifts. These 9,000 lb. capacity adapters will be able to instantly extend the reach of your lift’s runways.

You won’t have to worry about finding difficult-to-reach lifting points again. The 6000AK arm kit can easily attach to each lift ramp, so you’ll be able to reach challenging contact points on your frame. Sporting new telescoping arms, each 6000AK lifting arm can be extended up to 18” past the edge of the platform, extending to a full 41.5” in length. Its rotating pin design allows for quick installation, and it’ll rotate smoothly. All these features come together to give you the power to position the lifting arm anywhere underneath your vehicle.

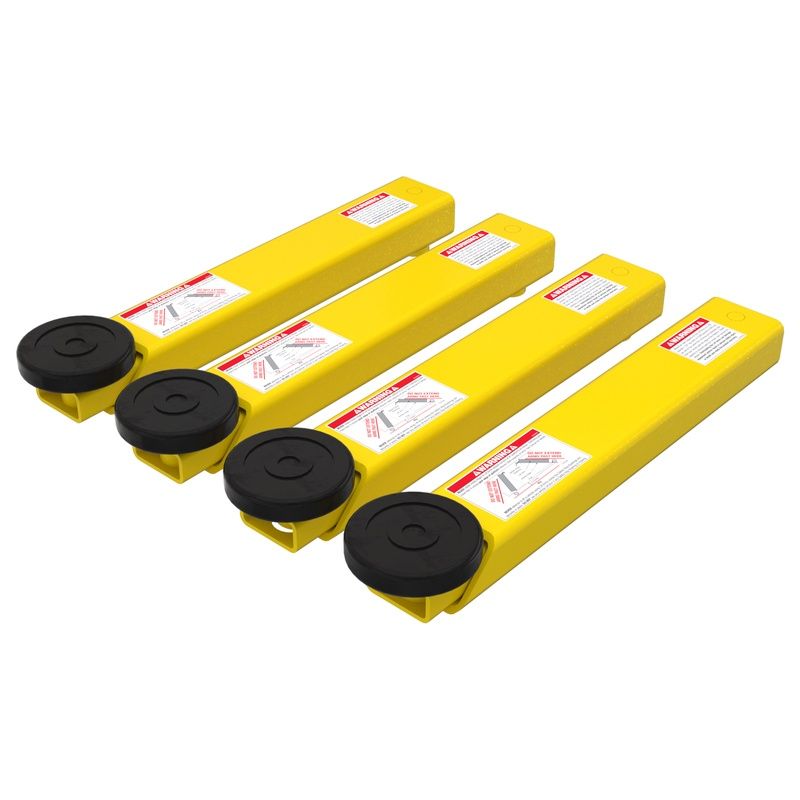

The 6000AK arm kit comes standard with four telescoping lift arms and four contact lift pads. The contact pads included in the kit are interchangeable and feature low-profile pads. These high-quality contact pads can easily drop into the lifting arm. They also have a thick polyurethane Tuf-Pad which has been designed to protect the chassis frame, all while providing a solid grip that will hold your car securely in place. The Tuf-Pads were designed to be able to handle heavy use, allowing you the freedom to safely lift vehicles of any size up to 9,000 lbs., making it perfect for light trucks and vans, especially ones in heavier weight classes. The 6000AK arm kit will give you the ability to adapt to any vehicle in your shop or garage with ease.

If you extend the Lift Arms (using their telescoping ability) past four inches from the edge of the platform, the rated capacity of the Lift Arms is reduced:

• Up to 4 inches: 2,250 lbs. per Lift Arm, 9,000 lbs. total. No reduction in rated capacity.
• At 6 inches: 1,500 lbs. per Lift Arm, 6,000 lbs. total.
• At 10 inches: 900 lbs. per Lift Arm, 3,600 lbs. total.
• At 18 inches (fully extended): 500 lbs. per Lift Arm, 2,000 lbs. total.
