PCL-18B (Set of 8)
144,000-lb. Capacity / Mobile Lift System / 208-230-190V, 50-60 Hz / 3 Ph / Set of 8
In stock
Only %1 left
SKU pcl-18b-8
$99,495.00

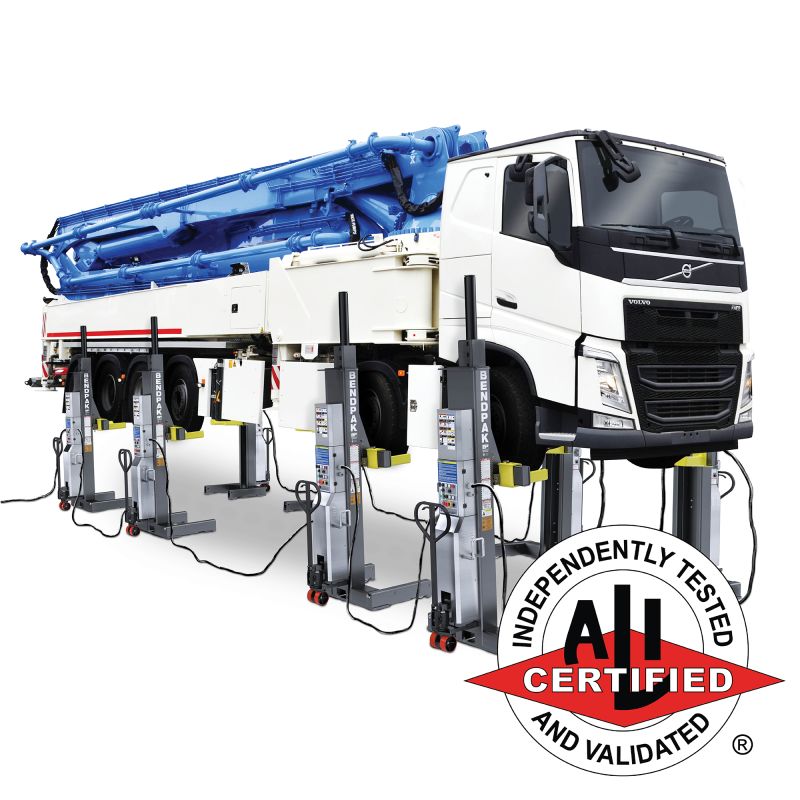

BendPak’s impressive PCL-18B mobile lift column is capable of lifting up to 144,000 lbs. of vehicle when you have a set of 8 columns. With that much power at your disposal, there is almost nothing you won’t be able to handle. The PCL-18B is perfect for four-axle vehicles, and can be purchased in sets of 2, 4, and 6.
Essential Accessories
Overview
Set of 8 Mobile Column Lifts
You’ll need a set of 8 mobile column lifts if you intend to do what most shops would call “impossible”. But what about for all the other jobs that won’t require such a massive lifting capacity? All you need to do is break them up into sets of 4, and you’ll be able to lift multiple heavy-duty trucks weighing up to 72,000 lbs. with each set. These mobile column lifts are BendPak’s most powerful lifting system so far. Most of their four-post lifts can handle 40,000 lbs., but if that’s not enough then you’ll need a heavy-duty set of mobile column lifts.
Features
- 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
- Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
- Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
- 208-240V, 3-phase main power system - optional voltages available upon request
- SINGLE, PAIR or TEAM operation
- For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
- Simple operation, long service life and minimum maintenance
- Intuitive controls allow the lift to be fully programmed and controlled from any column
- Control systems feature 24-volt safety circuitry
- The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace
- Smart electronics feature self-diagnostics and self-calibration functions
- Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
- Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
- Two-speed lowering option – turtle or rabbit speed settings
- Each column is equipped with a warning light and audible alarm for critical warning alerts
- Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
- Separate key lock enclosure on each column
- Electronics are multi-fuse protected
- An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas
- Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle
- Low-mounted power units and cylinders means a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems
- Extended forks accommodate wide tires and deep wheel configurations
- Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters
- Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris
- Heavy-duty steel carriage rollers feature turned, ground and polished axle pins
- Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks
- Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another
- Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss
- Multiple, automatic, independent safety locks spaced every four inches ensure safe operation
- Space-saving design, reduced column weight and a tight turning radius provides improved mobility
- Use the lift to place vehicles on tall jack stands then use the columns to raise another vehicle in an adjoining bay
- Durable powder-coat finish
Specs
| SKU# | 5175294 |
|---|---|
| Lifting Capacity | 18,000 lbs. (8,165 kg) |
| A - Overall Height (RAISED) | 101” (2,565 mm) |
| B - Overall Height (LOWERED) | 146.5” (3,721 mm) |
| C - Max. Lifting Height | 71.5” (1,889 mm) |
| D - Overall Depth | 48.75” (1,238 mm) |
| E - Overall Width | 45” (1,143 mm) |
| F - Chassis Length | 32.25” (819 mm) |
| G - Min. Lifting Fork Width | 9.5” (241 mm) |
| H - Max. Lifting Fork Width | 35” (889 mm) |
| I - Lifting Fork Length | 11.5” (292 mm) |
| Turning Circle | 40” (1,016 mm) |
| Column Weight | 1,450 lbs. (657 kg) |
| Lifting Speed | 85 sec |
| Shipping Weight per Column | 1,450 lbs. (657 kg) |
| Shipping Dimensions per Column | 106'' x 55'' x 41'' (2,696 mm x 1,397 mm x 1,041 mm) |
