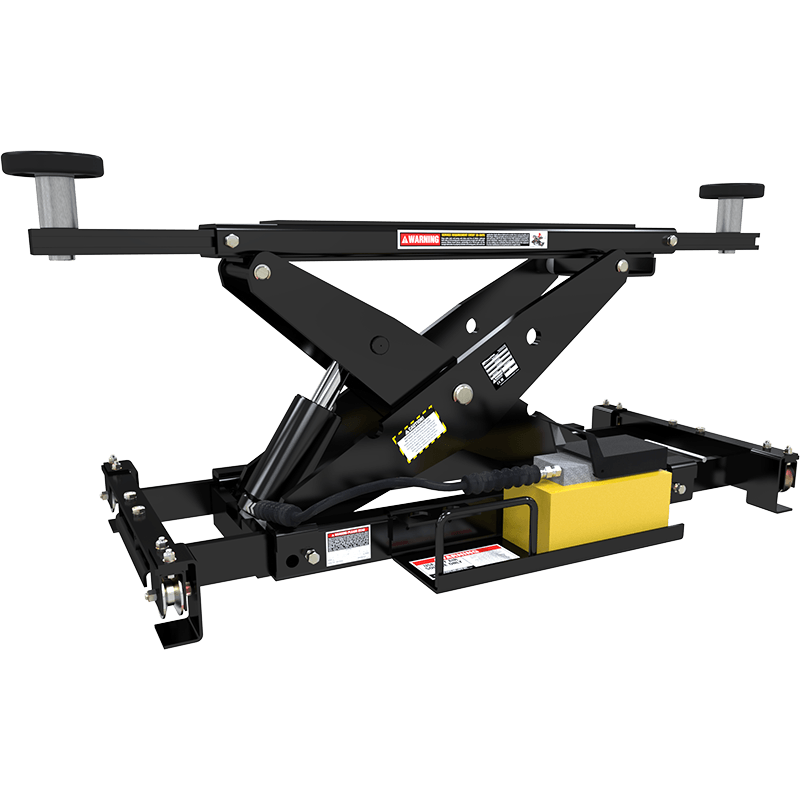

RJ7W
7,000-lb. Capacity / Rolling Bridge Jack / Easy-Roll Wheels
In stock
SKU 5175249
$2,100.00
The RJ7W is a 7,000 lb. capacity rolling bridge jack which was made for the HDS-14 series four-post lift. It is also compatible with the HD-14T. Every rolling jack comes complete with three safety-lock positions and stackable pad adapters to provide added clearance when needed.
Overview
Lift 7,000 lbs. for Full Wheel Service Capability
When you’re working on your HDS-14 Series lift, or the HD-14T, you’ll eventually need to do a tire swap. For occasions like this you’ll either need to purchase another lift, or you can invest in a pair of high quality RJ7W rolling bridge jacks to lift up the vehicle.
Easy-Roll Wheels Come Standard
The RJ7W rolling bridge comes equipped with easy-roll wheels that fit onto the runway channels on standard four-post lift models with 14,000 lbs. or greater lifting capacity. With it, you will be able to receive an effortless gliding along the runways for easy positioning and adjustability. BendPak has designed their rolling bridge jack rollers with hardened stainless-steel and had them zinc plated for maximum durability.
Rubber contact pads
Suspension rigs and vehicle bodies sit at different heights above the ground, which means the RJ7W will need rubber contact pads with stackable adapters. Now you’ll be able to reach the lift points without sacrificing how much rise you’ll be able to get out of the jack. The adapters work on virtually every vehicle type; all you need to know is whether the RJ7W is the right jack for you.
High-pressure hydraulic power unit
The RJ7W rolling bridge jack has a single, air-hydraulic pump which has been fitted to the side of your RJ7W rolling bridge jack. Your car lift has its own electric-hydraulic system that runs independent of your jack’s. After you connect the air line to the jack, which needs 125 PSI and 10-2- CFM, you can activate the jack with an easy-to-use foot pedal.
Three lock levels
You want your operators to work in comfort, and that’s why BendPak has designed the RJ7W to have multiple lock levels. The rolling bridge jacks can be lifted to three different positions, and lock automatically as the jack rises and release together as the jack descends. The car lift operations are separate from those of the bridge jack.
Features
- 7,000-lb. lifting capacity
- Easy-Roll Wheels
- Rubber contact pads
- Stackable adapters
- High-pressure hydraulic power unit
- Optional air-line kit
Specs
SKU# | 5175249 |
---|---|
Lifting Capacity | 7,000 lbs. (3,175 kg) |
Suitable Lift Model(s) | HDS-14 Series, HDSO14P, HD-14T |
Min. Drive-Over Height Pad Only | 4" (102 mm) |
Min. Drive-Over Height Pad + 2.75" Adapter | 6.75" (171 mm) |
Min. Drive-Over Height Pad + 5.5" Adapter | 9.5" (241 mm) |
Max. Lifting Height Pad Only | 14.75" (375 mm) |
Max. Lifting Height Pad + 2.75" Adapter | 17.5" (445 mm) |
Max. Lifting Height Pad + 5.5" Adapter | 20.25" (514 mm) |
Support Base Width | 36.25" (921 mm) - 46.5" (1,181 mm) |
Max. Arm Reach | 56" (1,422 mm) |
Min. Arm Reach | 42" (1,067 mm) |
Time to Full Rise | 55 seconds |
Pump | Air/Hydraulic |
Air Pressure | 125 PSI (10-25 CFM) |
Max. Operating Hydraulic Pressure | 4,550 PSI |
Power Requirement | None |
Shipping Weight | 440 lbs. (200 kg) |
Shipping Dimensions | 42" x 25" x 15" (1,066 mm x 635 mm x 381 mm) |
