XPR-12FDL
12,000-lb. Capacity / Two-Post Lift / Floorplate / Direct-Drive / Triple-Telescoping Arms
In stock
SKU 5175403
$9,095.00
The XPR-12FDL from BendPak offers the same level of quality of their XPR-9 and 10 Series of two-post lifts but brings far more lifting power to the table. The XPR-12FDL is an open-top car lift that’s packed with pure, brutish muscle. Similar to the clearfloor lift, this one also offers Direct-Drive performance.
Essential Accessories
Overview

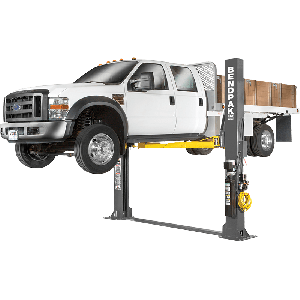

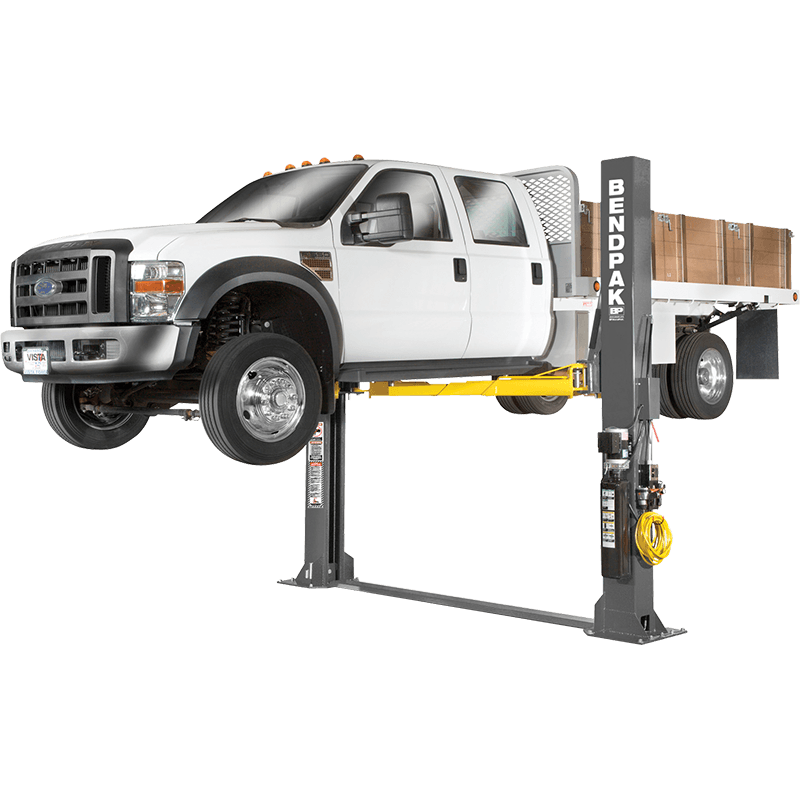

XPR-12FDL Offers Heavy-Duty Lifting Capability
The BendPak XPR-12FDL stands out as an exceptional two-post lift tailored to handle a diverse range of vehicles within its weight class. Boasting a substantial lifting capacity of 12,000 lbs., this lift is categorized as medium-duty and is well-suited for a wide spectrum of applications, including lifting massive trucks, SUVs, commercial vans, and even low-profile race cars. The lift’s design emphasizes versatility, making it an indispensable tool for both professional auto shops and serious DIY garages. With its open-top design, the XPR-12FDL eliminates the need for a crossbar, a desirable feature for taller vehicles, and facilitates hydraulic lines running on the floor between the posts, enhancing practicality in usage.
Dual Direct-Drive two-post car lift technology
One of the key strengths of the XPR-12FDL lies in its thoughtful engineering, utilizing Direct-Drive technology with minimal moving parts, ensuring not only reliability but also low maintenance requirements. The incorporation of a dual-synchro equalization system further enhances safety, providing users with a stable and worry-free lifting experience. The three-stage telescoping arms strike a careful balance, accommodating larger vehicle profiles while still reaching the lift points on smaller vehicles, showcasing the lift’s adaptability to different needs.
Automatic arm restraints
Automatic arm restraints, a single-point safety release, and a high-grade overhead shutoff bar contribute to a comprehensive safety package, underlining BendPak’s commitment to ensuring the well-being of users. The dropped-end design adds an extra layer of protection by preventing scratches or damage to the doors and chassis of low-profile cars during the lifting process.
Maintenance-free load bearings
BendPak’s commitment to durability and longevity is evident in various design elements. The lift features UHMW load bearings that require minimal lubrication and practically never degrade over time, ensuring lasting and reliable performance. The single-piece steel construction of the columns is a testament to BendPak’s dedication to providing equipment that lasts for decades, withstanding the rigors of daily use in auto shops.
16-Piece adapter set / standard
For added value, the XPR-12FDL comes complete with a versatile accessory kit at no extra cost. This kit includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads, and four frame cradle pads, offering users flexibility in lifting different vehicle types. The lift's user-friendly features, such as a single-point safety release and a high-grade overhead shutoff bar, contribute to a hassle-free and safe lifting experience. The inclusion of free-flow, high-pressure 3/8” hydraulic lines, a high-flow pump, and an integrated AC power unit ensures fast operation without compromising safety, making the XPR-12FDL a standout choice for those seeking a reliable, versatile, and durable two-post lift.
Features
- 12,000-lb. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
- Open-top eliminates overhead obstruction
- Single-piece columns
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual direct-drive hydraulic cylinders
- Oversized 53" tall carriage for superior strength and durability
- Large, 25" x 22" A36 steel base plate
- Electric / hydraulic power system
- Oversized A36 steel base plates
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 3"
- Plated arm restraints and arm pins for rust prevention
- Heavy-duty 1/2" aircraft-quality equalizer cables
- Oversized 6" cable sheave diameter reduces cable fatigue
- 16-piece specialty adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads
- Front and rear triple-telescoping arms provide increased range for lifting point access
- Versatile drop-in contact pads with stackable adapters
Specs
| SKU# | 5175403 |
|---|---|
| Lifting Capacity | 12,000 lbs. (5,443 kg) |
| *Max Capacity / Front Axle | 6,000 lbs. (2,722 kg) |
| *Max Capacity / Rear Axle | 6,000 lbs. (2,722 kg) |
| A - Rise | 69" (1,753 mm) |
| B - Rise + Pad Only | 74" (1,880 mm) |
| C - Rise + Pad + 63 mm Adapter | 79" (2,007 mm) |
| D - Min. Height + Pad | 5" (127 mm) |
| E - Height Overall | 144" (3,658 mm) |
| F - Width Overall | 155" (3,937 mm) |
| G - Outside Columns | 146" (3,708 mm) |
| H - Inside Columns | 118" (2,997 mm) |
| I - Drive-Thru Clearance | 103" (2,616 mm) |
| J - Floor To Overhead Switch | 147" (3,734 mm) |
| K - Front Arm Reach: (MIN) | 39" (991 mm) |
| K - Front Arm Reach: (MAX) | 59" (1,499 mm) |
| L - Rear Arm Reach: (MIN) | 39" (991 mm) |
| L - Rear Arm Reach: (MAX) | 59" (1,499 mm) |
| Max Load Per Arm | 3,000 lbs. (1,361 kg) |
| L - Height | 2" (51 mm) |
| M - Width | 8.5" (216 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
| Shipping Weight | 2,530-lbs. (1,147 kg) |
| Dimensions | 151'' x 29'' x 46'' (3,835 mm x 737 mm x 1,168 mm) |
| Time to Full Rise | 55 seconds |
