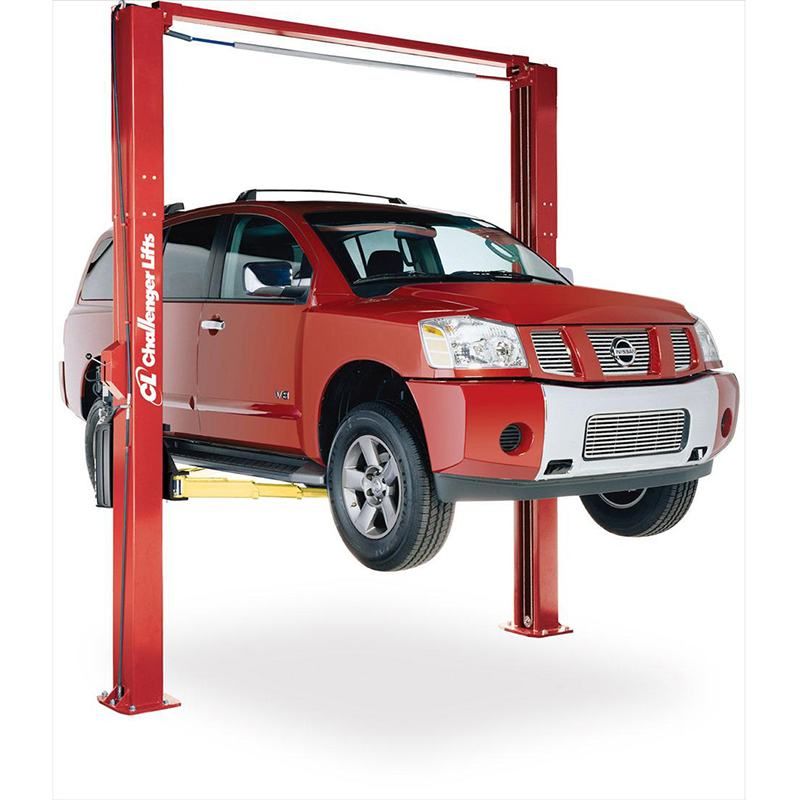

Challenger VLE10
VLE10 VERSYMMETRIC® CAR LIFT
In stock
SKU 6010127
$5,901.00
Challenger adds the industry leading Versymmetric® Technology to the popular economy grade 10,000 lb 2-post lift, the LE10. Expand your service capabilities with the VLE10’s ability to lift a wide range of vehicles, including Forbes Top 20 Best-Selling Vehicles of 2020.
Features
- 3-Stage Versymmetric® front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay.
- 11.875” standard height fits in service bays with 12’ ceiling height.
- Double telescoping screw pads with rubber foot pad.
- Padded overhead shut-off system prevents vehicle damage.
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts are now standard on the VLE10.
- Rubber door guards protect vehicle from door damage.
- Premium powder coat finish provides long-lasting durability.
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability.
Specs
| SKU# | 6010127 |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Lifting Configuration | Symmetric and Asymmetric |
| Arms | 3-Stage Versymmetric® Front/2-Stage Rear |
| Max Load Per Arm | 2,500 lbs |
| Rise Height (screw pads at highest position) | 74.75" |
| Overall Height | Standard: 143.875" Extended Height: 167.875" |
| Overall Width | 131.625" |
| Drive-Thru Clearance | 98.375" |
| Floor to Overhead Switch | Standard: 137" Extended Height: 161" |
| Front Arm Reach | 22.3125"-39.375" |
| Rear Arm Reach | 38.375"-55.375" |
| Screw Pad Height | 4.25"-6.75" |
| Between Columns | 110.25" |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Rise Time | 44s |
| Ceiling Height Required | Standard: 12' Extended Height 14' |
