CI521E80V-P
5Hp, 208-230V, 1Phase, 60Hz, 80Gal., Vert. Tank 18Cfm@175Psi, Ci521E80V
In stock
SKU 6010278
$3,384.00

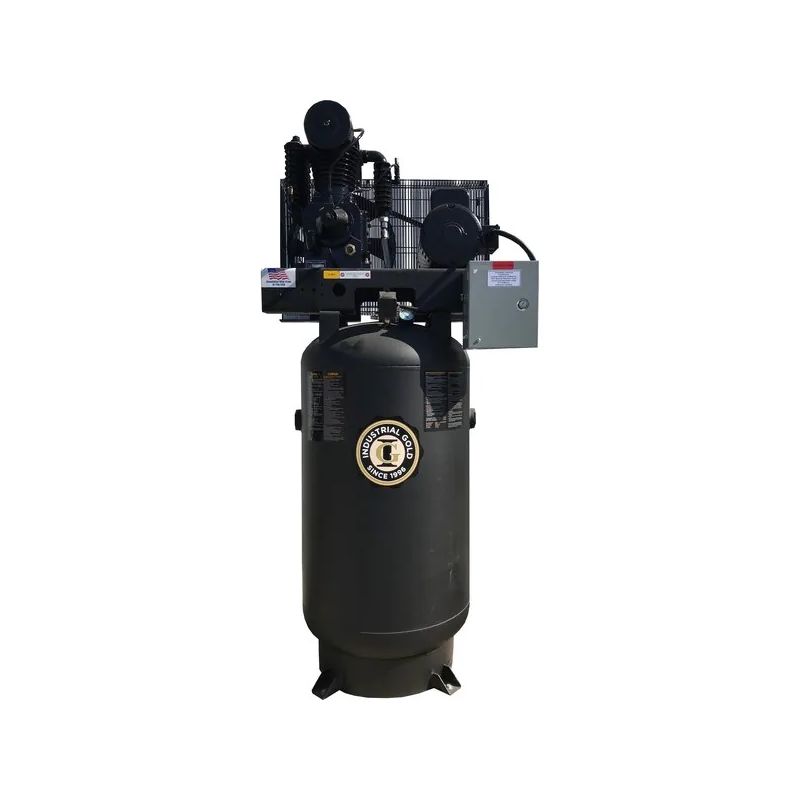

This heavy-duty cast-iron air compressor from Industrial Gold can deliver a solid 18CFM capable of running a 2–3-person shop.Overview
Industrial Gold’s Industrial Series of reciprocating compressors are designed for heavy commercial and industrial applications. Its low RPM pumps provide reliable air for your applications and are manufactured for durability and long life. All of these units feature some of the most heavy-duty components that are currently found in piston compressors. No start up kit required, and for added peace of mind, you can enjoy the optional 5-year warranty.
Features
- 17 cfm @ 175 psi
- No Start-Up Kit Required
- Optional 5-Year Pump Warranty
- Access to compressor valves without compressor head removal
- All UL electrical controls
- ASME tested powder coated steel tank
- Auto start stop
- Bearings on both ends of the crank shaft
- Centrifugal unloader
- Disk and spring valves
- Fully enclosed belt guard
- Heavy-duty air filter
- Heavy-duty two-stage solid cast iron pump
- Industrial grade electric motor
- Magnetic starter mounted and wired
- Needle bearings, and inserts on rods
- Stainless steel flex air lines
- Swedish steel valves
- TEFC drive motor (3 phase only)
- Torrington needle bearings
- 2-grove B width motor pulley
- 2-piece tank top plate design
Specs
| SKU# | 6010278 |
|---|---|
| Model | CI521E80V |
| Horsepower | 5 hp |
| Phase | 1 |
| Voltage | 208/230 |
| Tank | 80 gal Vertical Tank |
| Op Pressure | 145-175 |
| CFM | 17.5 |
| Dimensions | 32" x 26" x 78" |
| Amp Draw 230 Volt | 24 |
| Amp Draw 480 Volt | N/A |
