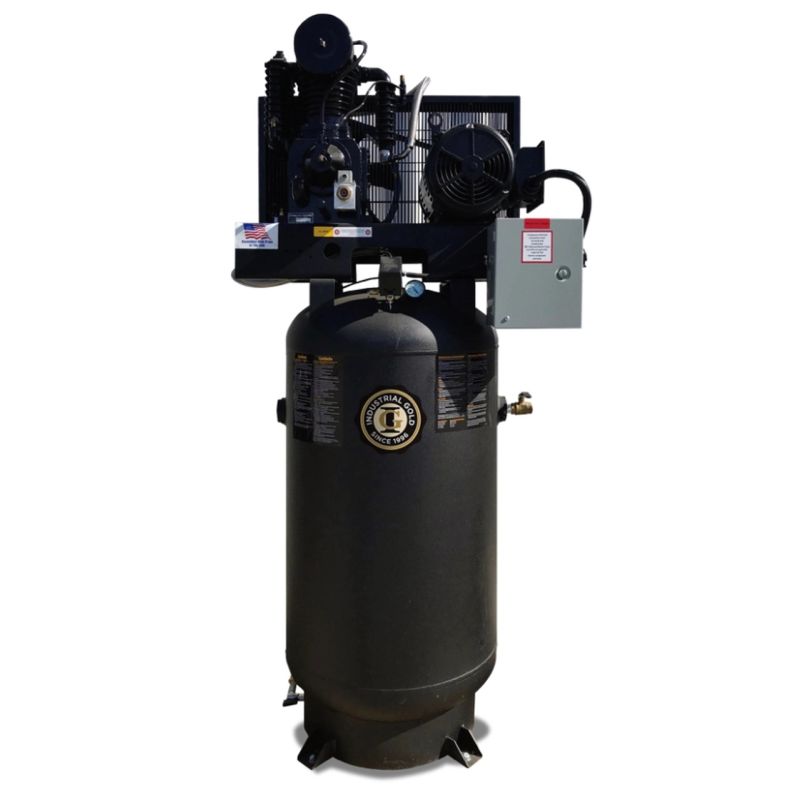

Industrial Gold CI7523E80V
7.5Hp, 208-230V, 3 Phase, 60Hz, 80 Gallon, Vertical Tank, Ci7523E80V
In stock
SKU 6010280
$3,573.00
7.5Hp, 208-230V, 3 Phase, 60Hz, 80 Gallon, Vertical Tank, Ci7523E80V
Overview
Heavy duty cast iron air compressors from Industrial Gold. This 7.5 HP unit gives you an impressive 28 CFM capable of running a 4-5 person automotive shop or small body shop.
Features
- 24 cfm @ 175 psi
- 7.5 HP 208-230 Volt Three Phase
- 80 Gallon Vertical Tank
- Pump RPM 894
- 32 FLA - Suggest 60 amp breaker
- Heavy Duty two stage solid cast iron pump
- Disk and Spring Valves
- Bearings on both ends of the crank shaft
- Needle bearings, and inserts on rods
- Industrial grade electric motor
- ASME powder coated steel tank
- 2 groove B width motor pulley
- UL electrical controls
- Access to compressor valves without head removal
- Auto Start - Stop
- Magnetic starter mounted and wired
- Fully enclosed belt guard
- Centrifugal unloader
- Heavy duty air filter
- Swedish steel vales
- Torrington needle bearings
- Dim: 32"L x 26"W x 79"H
Specs
| SKU# | 6010280 |
|---|---|
| Model | CI7523E80V |
| Horsepower | 7.5 hp |
| Phase | 3 |
| Voltage | 208/230 |
| Tank | 80 gal Vertical Tank |
| Op Pressure | 175 |
| CFM | 24 |
| Dimensions | 32" x 26" x 79" |
| Amp Draw 230 Volt | 24 |
| Amp Draw 480 Volt | N/A |
