Hofmann EELR708APKG
15K FOUR POST / ALIGNMENT LIFT
In stock
SKU 6010161
$33,070.00

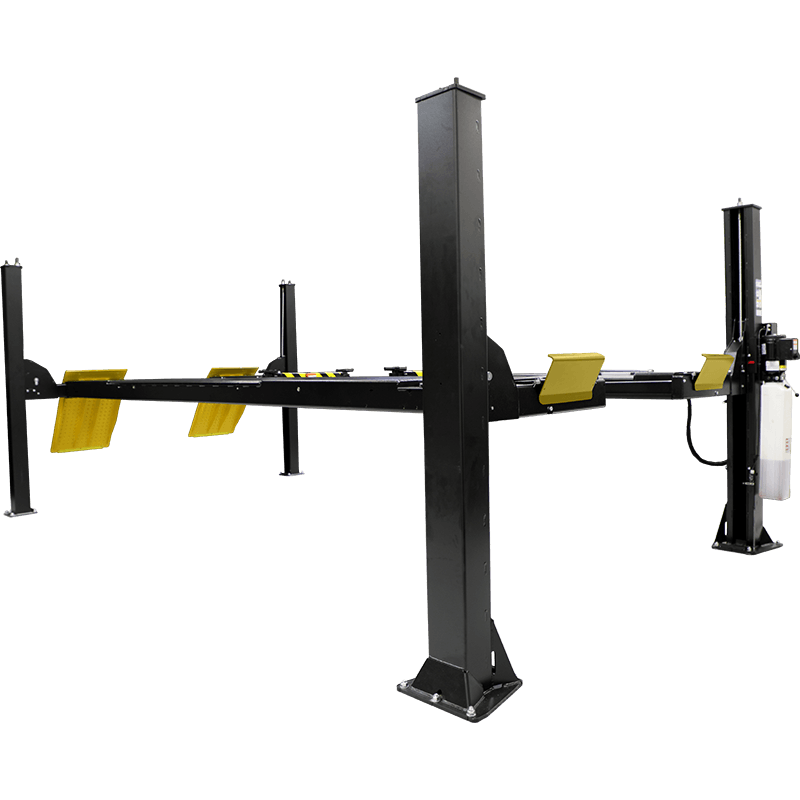

Hofmann EELR708APKG Extended 15K 4 Post Alignment Lift
Overview
Accommodating, accessible, and equipped - the Hofmann®15k 4-post Alignment Lift is designed for the modern era of automotive service with a robust and refined structure made for professional-grade lifting.
Offering a heavy-duty lifting capacity of 15,000 lbs., convenient open-front construction, ultra-wide runways and extended 100” rear slip plates with easy-access low-approach ramps, this 4-post lift is equipped to handle a diverse range of vehicles and take your service work to the next level.
Available in two lengths: standard and extended, this lift is certified to the industry's leading ANSI/ALI automotive lift standard.
Features
Expanded clearance and extended runways
- 120” drive-on clearance / 125” body clearance allows dual-wheel trucks to drive on without interference
- Best-in-class, ultra-wide, 26” runways accommodate wide-track vehicles
- Ultra-low-profile, 8” runways allow “easy-on” approach angle for low-profile vehicles
- Extra-long 100” rear slip plates for improved 4-wheel alignment capability for long and short wheelbase vehicles
Easy access, open-front design
- Open-front construction provides easy access to service areas for hassle-free adjustments and repairs
- Micro-adjustment leveling on front and rear cross beam
- Adjustable, folding 4” front wheel stops have clearance for long, low-profile vehicles
- Imaging alignment compatible – easily accommodate split-roll during alignment using AC200 or AC400 clamps
Lights and Locks models available:
- EELR708LLPKG extended
Specs
| SKU | 6010161 |
|---|---|
| Capacity | 15000 lbs |
| Lifting times | 85 s |
| Motor | 3 Hp |
| Power supply | 230 VAC 1Ph 50/60 Hz |
| Minimum concrete thickness | 4 inch |
| Weight | 4550 lbs |
| Width Between Runways | 40.625 inch |
| 4 Wheel Alignment Wheelbase | 68-158 inch |
| 2 Wheel Alignment Wheelbase | 167.75 (standard) / 195.25 (extended) inch |
| Air Supply Requirements | 90-120 Psi |
| Front Accessibility | open |
| Overall Length | 250.75 (standard) / 277 (extended) inch |
| Service Wheelbase | 183 (standard) / 210.5 (extended) inch |
| Overall Width | 142 inch |
| Column Height | 99.25 (front) / 98 (rear) inch |
| Lifting Capacity Per Column | 3750 lbs |
| Runway Width | 26 inch |
