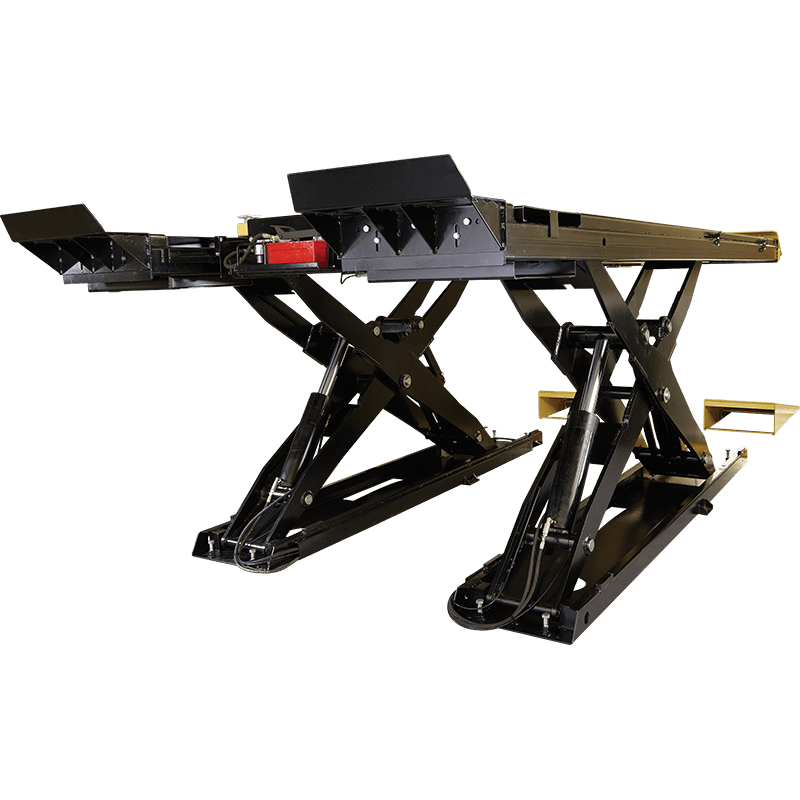

Hofmann EELR709APKG
12K SCISSOR / ALIGNMENT LIFT
In stock
SKU 6010162
$25,630.00
Hofmann EELR709A Surface-Mount / EELR724A Flush-Mount Scissor Alignment Lift Packages
Overview
The Hofmann® 12k Scissor Alignment Lift is a rugged 12,000 lb capacity scissor alignment lift with an open front design that provides easy access to alignment service and calibration areas.
“Pro-Style” 24" wide runways provide easy drive-on for large vehicles. Hydraulic equalization and full support rear member deliver repeatable smooth level lifting. Flush mounted rear slip plates with heavy-duty encapsulated bearings support and offer smooth movement to ease rear alignment adjustments.
Features
- Part Number: EELR709APKG
- Adjustable turnplate pocket depth ensures level positioning of turnplates
- Expandable approach ramps provide multi tiered drive on approach to suit vehicle clearance and bay length. Extends up to 87". Retracts into itself 35" minimum
- Each heavy duty rolling jack is easy to position and provides 6,000 lbs of wheelfree® lifting
- Lifts straight up - no for or aft movement
- Cross aligned heavy duty hydraulic cylinders maintain constant level lifting with supporting reinforcing rear mount cross member
- Dual engaging twin interlocking mechanical safety racks with pneumatic release
- Smooth lift operation with captured re-enforced glide blocks
- Single point safety lock release system
- Compact, enclosed control console
- On-board Filter/Regulator/Lubricator (FRL) protects air systems
- Powder coat finishing with non-skid runway platform surface
- Certified to the current ANSI/ALI ALCTV:2011 lift standard
- Flush mount model available (EELR724APKG)
Specs
| SKU | 6010162 |
|---|---|
| Capacity | 12000 lbs |
| Lifting times | 95 s |
| Lowering times | 45 s |
| Lifting height | 70 inch |
| Power supply | 230 VAC 1Ph 50/60 Hz |
| Weight | 6615 lbs |
| Width Between Runways | 40 inch |
| 4 Wheel Alignment Wheelbase | 89 - 158 inch |
| 2 Wheel Alignment Wheelbase | 165 inch |
| Console Dimensions DxWxH | 16.5 x 14.125 x 45.75 inch |
| Air Supply Requirements | 90 - 140 Psi |
| Service Wheelbase | 179 inch |
| Overall Width | 90 inch |
| Lifting Speed | 95 s |
| Lowering Speed | 45 s |
| Runway Width | 23 inch |
