Hofmann EELR728APKG
12K FOUR POST / ALIGNMENT LIFT
In stock
SKU 6010163
$17,036.00

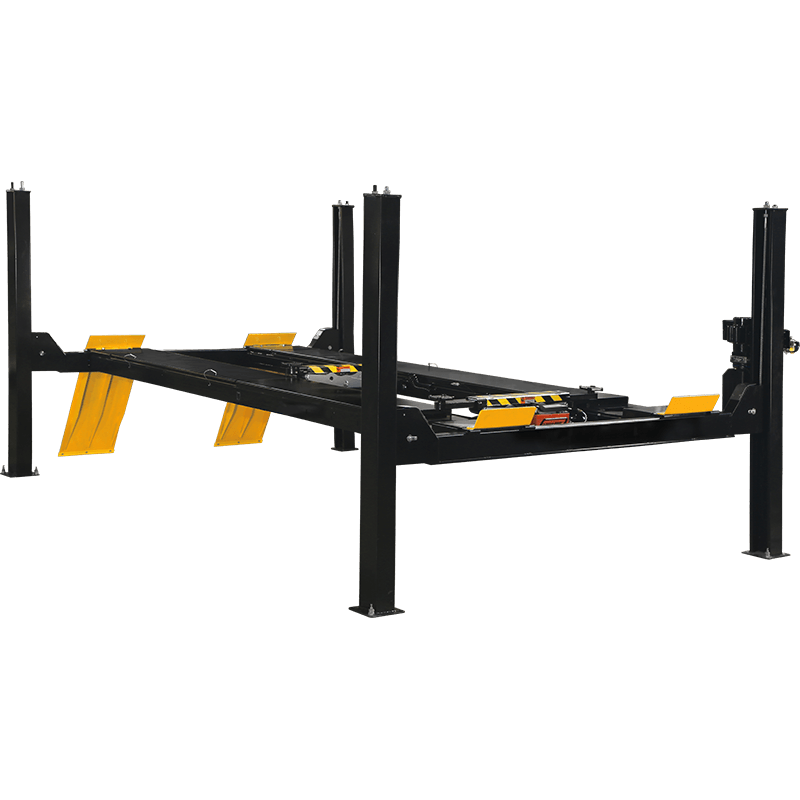

Hofmann EELR728APKG 12K 4 Post ALI Alignment Lift w/Turntables & 2 Rolling Jacks
Overview
Versatile 12k 4-post alignment lifts give you 12,000 lbs of heavy-duty lifting capacity in a compact and stable lift design without the need for multiple lifts. Whether it is a microcar or a heavy-duty pickup, the 12k four post alignment lift has four-wheel alignment capabilities that cover a full range of vehicle requirements.
Features
- A conveniently packaged alignment lift with 20.5” wide “Pro-Style” runways, 2 roller jacking systems, premium turn plates and roll back kit that provides for a complete professional grade alignment system.
- Save time when loading vehicles of narrow to wide track widths on an ultra-low-profile, shake free and stable closed front design.
- This unit maintains a steady and shake free surface for advanced alignment equipment measurements.
- 81.6” long rear slip plates — no need for repositioning of the front turnplates to accommodate for longer or shorter vehicles
- 81.6” long rear slip plates means no need for repositioning of the front turn plates to accommodate for longer or shorter vehicles.
- Hydraulic cylinder mounted underneath runway.
- Industry proven, brake formed front columns and traverse beam design spreads critical load forces over longer/larger supporting areas to ensure alignment accuracy.
- Locking ladders mount through the traverse beams to ensure safety lock engagement.
- Filter / Regulator / Lubricator (FRL) provides a clean and lubricated air supply to the lift and jack systems; improving reliability and reducing the need for maintenance.
- Slack cable support system to keep cables from hanging when the lift is on the locks.
- Textured approach ramps for positive vehicle traction.
Specs
| SKU | 6010163 |
|---|---|
| Capacity | 12000 lbs |
| Lifting times | 74 s |
| Lifting height | 78 inch |
| Power supply | 230 VAC 1Ph 50/60 Hz |
| Weight | 3307 lbs |
| 4 Wheel Alignment Wheelbase | 88.5" - 158.5" inch |
| 2 Wheel Alignment Wheelbase | |
| Air Supply Requirements | 90-120 Psi |
| Front Accessibility | closed |
| Overall Length | 251.5" inch |
| Service Wheelbase | 183" inch |
| Overall Width | 134.8" inch |
| Column Height | 90.5" inch |
| Lifting Speed | 74 s |
| Runway Width | 20.6" inch |
