Hofmann EELR787APKG
14K STANDARD / STANDARD BAY ALIGNMENT LIFT
In stock
SKU 6010164
$39,664.00

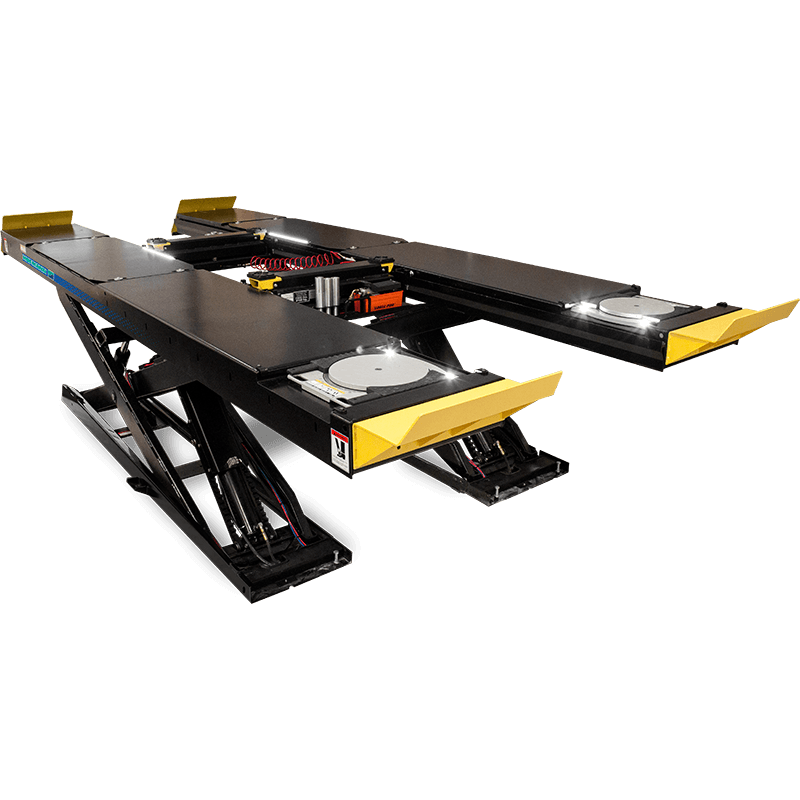

Hofmann EELR787A Surface-mount / EELR788A Flush-mount 14K Scissor Standard Bay Alignment Lift Packages
Overview
Hofmann® Scissor Alignment Lifts are easy to operate, provide increased accessibility to alignment adjustment areas and are easy to load. Space saving design allows for up to five scissor lifts to fit into the same operating space as four 4-post lifts.
Features
- Maintenance reduced rear slip plates use oversized, encapsulated bearings that roll upward to protect against environment debris
- Four hydraulic cylinders in a cross aligned arrangement provide secure lifting power and added safety
- Approach ramps are equipped with end sliders to minimize noise and reduce floor damage
- Adjustable maximum lift height suits locations with low ceilings
- Safety systems include:
- Mechanical locking with pneumatic safety lock release from the control console
- Flow sensing valves within the hydraulic control circuit
- Redundant hydraulic safety system with cross aligned hydraulic circuits - On-board Filter/Regulator/Lubricator (FRL) provides clean and lubricated air to help reduce maintenance and protect pneumatic systems
- All models have been tested and validated by an independent third party to the ANSI/ALI automotive lift standard, ALCTV-2011
Specs
| SKU | 6010164 |
|---|---|
| Capacity | 14000 lbs |
| Lifting times | 80 s |
| Power supply | 230 VAC 1Ph 50/60 Hz |
| Weight | 6207 lbs |
| Width Between Runways | 38 inch |
| 4 Wheel Alignment Wheelbase | 88 - 155 inch |
| 2 Wheel Alignment Wheelbase | 180 inch |
| Console Dimensions DxWxH | 16.5 x 14.125 x 45.755 inch |
| Air Supply Requirements | 90 - 120 Psi |
| Front Accessibility | open |
| Overall Length | 270 inch |
| Service Wheelbase | 194 inch |
| Overall Width | 92.5 inch |
| Lowering Speed | 80 s |
| Runway Width | 26 inch |
