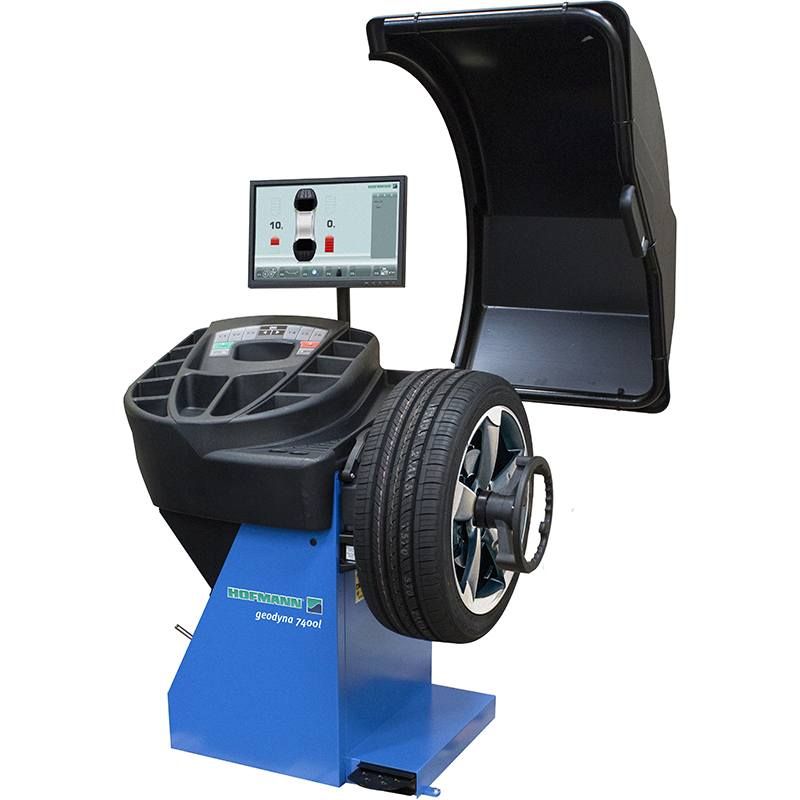

Hofmann GEODYNA 7400L
WHEEL BALANCER WITH LCD MONITOR
In stock
SKU 6010170
$6,858.00
The Hofmann geodyna 7400l wheel balancing system is designed to satisfy high-throughput customers.
Overview
Unparalleled speed and accuracy, with non-contact rim width acquisition via smartSonar, exact weight placement via the easyWEIGHT pinpoint laser, and a 19" LCD monitor featuring step-by-step video instructions and an intuitive user interface.
Features
easyWEIGHT - Pinpoint indicator light offers an accurate, fast and easy solution to position adhesive weight on the wheel
Accurate and Quick Clamping - With the included cones or the optional stud-hold flange accessory, clamping is fast and easy
Short Balancing Cycle
- The geodyna 7400l is equipped with a semi-automatic data entry for rim diameter and offset
- smartSonar automatically detects rim width and the measurement cycle is started as soon as the wheel guard has been completely lowered
Intuitive Interface
- User-friendly interface where all functions are clearly marked with picture icons
- Large digits for the amount of the balance weight and bright indicators for weight position
- Fast and intuitive selection of the cycle modes
EZ-Collets - Mobile app helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
Specs
| Wheel clamping | Quick Nut |
|---|---|
| Diameter of shaft | 40 mm |
| Measuring speed | < 200 rpm |
| Balancing accuracy | 0.035 oz (1 g) |
| Angular resolution | ±0.35° |
| Length of shaft | 225 mm |
| Start/Stop balance time - Check spin (Wheel 195/65R15) | 4.5 s |
| Manual rim diameter range | 8" - 32" |
| Manual offset range | 1" - 20" |
| Manual rim width range | 1" - 20" |
| Semi-automatic rim diameter range | 8" - 25" |
| Semi-automatic rim width range | 3" - 15" |
| Max. wheel diameter | 42" |
| Max. wheel weight | 154 lbs (70 kg) |
| Motorized | Yes |
| Power Requirements | 230 VAC 1 ph 50/60 Hz – 1.1A |
| Dimensions LxWxH (Unit only) | 51" x 34" x 50" |
| Net Weight | 253 lbs (115 kg) |
