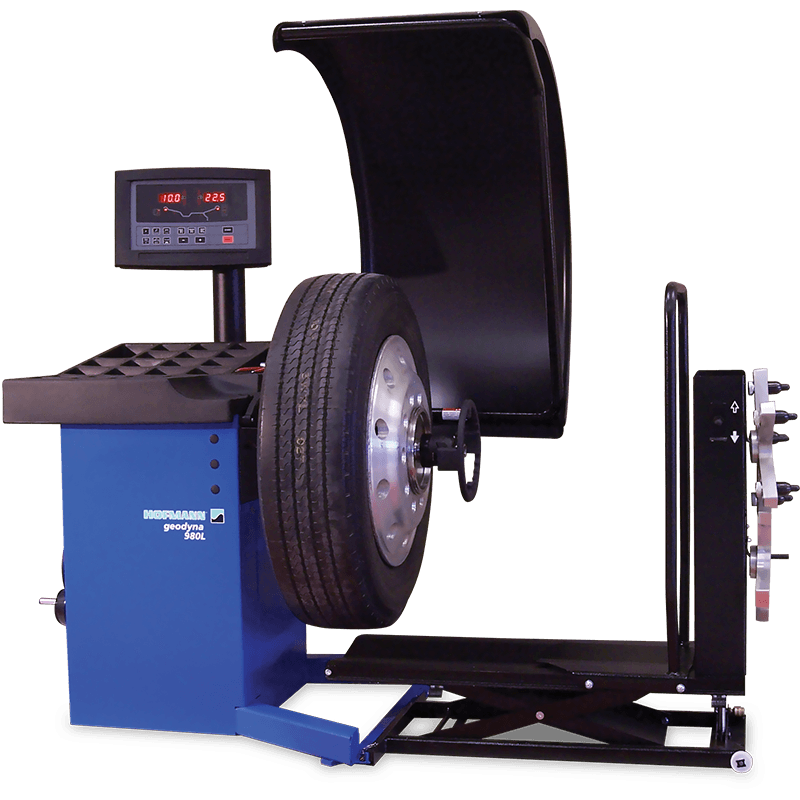

Hofmann GEODYNA 980L
HEAVY-DUTY WHEEL BALANCER
In stock
SKU 6010172
$14,723.00
The geodyna® 980L measures both the static and the dynamic portions of unbalance and consequently increases truck wheel life considerably.
Overview
The geodyna® 980L heavy-duty wheel balancing system is designed to handle the balancing needs of trucks, buses, RV’s, and Light Truck/Automobile tires. The geodyna® 980L is equipped to handle from the smallest of wheels, 12" (30.5 cm) to heavy-duty 25" (63.5) and “super-singles”.
The geodyna® 980L assists in reducing tire tread wear with its 2-Plane/Dynamic, off-the-vehicle balancing of truck tires. A pneumatic wheel lift is included to assist with heavy lifting and proper wheel mounting. Increased accuracy with semi-automatic entries of wheel distance and diameter, along with easy re-calibration that can help save on costly service calls. The geodyna® 980L comes standard with mounting adapters for both hub-piloted and stud-piloted truck wheels and a passenger/light truck centering cone kit for automotive use.
Features
Automatic input of offset and rim diameter (2D SAPE)
Input of rim width by pressing of the function key and turning of the wheel (patented)
Electronic friction brake to retain the wheel in any position
Virtual plane measurement (VPM) technique (patented)
Weight tray with 27 weight compartments and shelves for cones and weight pliers
Measuring speed less than 100 rpm, hence no wheel guard required
Automatic braking of the wheel after measurement
Automatic static and dynamic unbalance measurement in a single measuring run
Cone adaptor with spacer and light-truck cone of 120 - 170 mm diameter
Gauge arm with weight clamp (patented) to enter wheel data and position adhesive weights
Hidden weight mode
Optimisation (patented)
Specs
| Motorized | Yes |
|---|---|
| Wheel clamping | Quick Nut |
| Balancing accuracy | 0.035 oz |
| Measuring time | < 20 s |
| Measuring speed | < 100 rpm |
| Max. wheel width | 26" |
| Max. wheel diameter | 51" |
| Max. wheel weight | 550 lbs |
| Rim diameter range | 8" - 30" |
| Rim width range | 2" - 20" |
| Input power (VAC)115 | 115 VAC / 8 Amps / 1Ph / 50/60Hz |
| Dimensions LxWxH | 54" x 55" x 76" |
| Net weight | 560 lbs |
