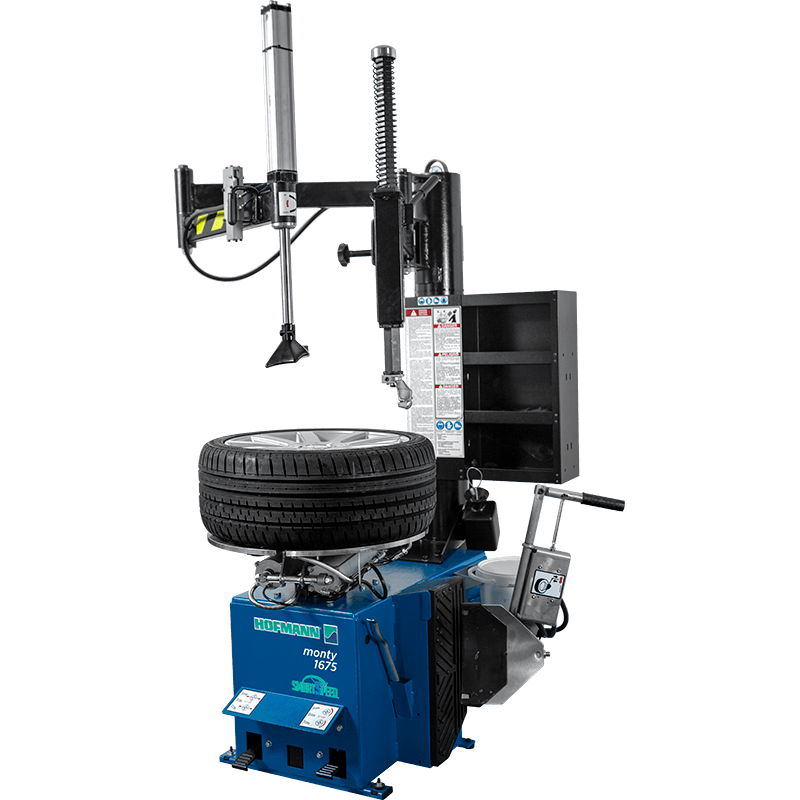

Hofmann MONTY 1675
SWING-ARM TIRE CHANGER
In stock
SKU 6010166
$10,451.00
The Hofmann® 1675 tire changing system is ideal for handling passenger cars, light trucks and high-performance wheel/tire assemblies.
Overview
The Hofmann® 1675 tire changing system is ideal for handling passenger cars, light trucks and high-performance wheel/tire assemblies. Ergonomic design and safety enhancing features provide the technician a safe workspace when changing a variety of tires. Locking mount/demount head offset provides maximum cosmetic safety for expensive wheels and significantly reduces the risk of harming wheel/tire assemblies.
Features
Robust, Professional Design
- Precision cast and machined shoes with robust cast jaws make for precise, slop free clamping
- Heavy-duty pneumatic valves are simple to operate and offer intuitive functionality
- Powerful electric motor generates 1200Nm of torque to the table top to mount stiff, difficult tires
Ergonomic, Hand Operated Bead Breaker Control
Newly designed bead breaker is easy to use and prevents the technician from having to straddle the assembly during bead breaking
Integrated Pressure Limiter
Stops air flow once pressure has reached 55 PSI (3.5 Bar) preventing accidental tire over-inflation
Mount/Demount Head
Locking of the mount/demount head offset, which provides maximum cosmetic safety for expensive wheels and significantly reduces the risk of harming wheel/tire assemblies
Tire Lifting Tool
Integrated bead pusher assists in the mount/demount process of the upper bead. Tire lifting tool aids the technician with the demounting process
Swin-Arm Configuration
Quick and easy setup. Stays within a compact footprint, even with larger tire sizes. Provides an ergonomic tire changing position
Specs
| Mount/Demount tool technology | M/D tool & bead lever |
|---|---|
| Tower technology | Swing arm |
| Clamping System | Turntable & clamping jaws |
| Tool vertical positioning | Manual |
| Jaw type | Adjustable - Sliding |
| Outside clamping range | 10" - 24" |
| Inside clamping range | 12" - 24" |
| Max wheel width | 15 inch |
| Wheel diameter | 53 inch |
| Breaking force | 2700 lbs |
| Rotation speed | 6.5 RPM - Single Speed |
| Bead seating- Top-side inflation | yes |
| Toolbox | Optional |
| Wheel lift | Optional |
| Power supply | 115 VAC 1Ph 50/60 Hz |
| Power supply (Amperage) | 12 A |
| Dimensions LxWxH | 53.3" x 46.1" x 80.75" |
| Weight | 750 lbs |
