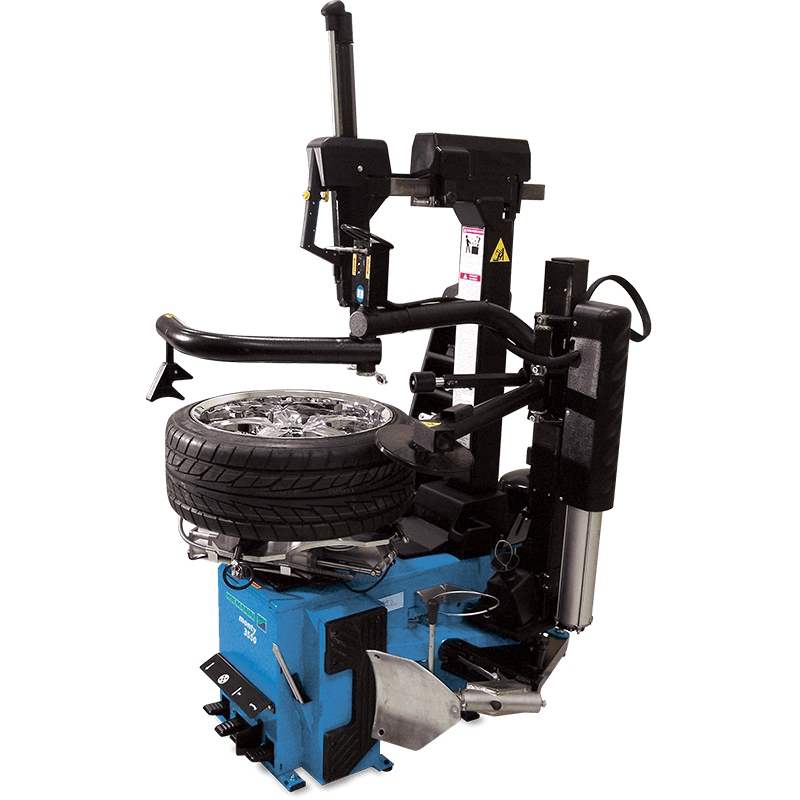

Hofmann MONTY 3550EM
TILT TOWER TIRE CHANGER
In stock
SKU 6010168
$12,691.00
The monty 3550 series is specifically designed to change low-profile, high-performance and run-flat tires, maximizing a shop’s versatility.
Overview
Hofmann's monty® 3550 series of high-performance tire changers feature the industry's most advanced capabilities to service a wide variety of wheel and tire assemblies. The monty 3550 series is specifically designed to change low-profile, high performance and run-flat tires maximizing a shop's versatility.
Features
Accommodates Large Wheel & Tire Assemblies - Allowing for a tire diameter of 47" and an outer-wheel diameter of 26" on the monty 3550 (30" on monty 3550em,) the monty 3550/3550em can handle wheel and tire assemblies found on cars and light trucks
Dual Wheel Clamping Cylinders - Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheel due to slippage
Four-Jaw Clamping Chuck - Self-centering and clamps wheel with either 28" inner or 26" outer diameter
Powerful Two-Position Bead Breaker - 6,000 lbs of power at the bead shovel and a range of up to 17" wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed
Pneumatically-Controlled Mount/Demount Head - Push-button controlled mount/demount head pneumatically lowers and locks into position, automatically indexing away from the wheel to prevent contact and damage to the wheel and tire assembly
Protect the Most Delicate Wheels - All metal parts have plastic protection providing non-metal to metal contact when changing delicate wheels
Two-Speed Capability (EEWH747A) - 7 RPM for delicate and difficult activities, 14 RPM for speed
Specs
| Clamping range | 12" - 28" |
|---|---|
| Outside clamping range | 12" - 26" |
| Inside clamping range | 12" - 28" |
| Capability | 70 kg |
| Power supply | 115 VAC 1Ph 50/60 Hz |
| Dimensions LxWxH | 75.6" x 67.7" x 89" |
| Weight | 975 lbs |
