CML-9X4

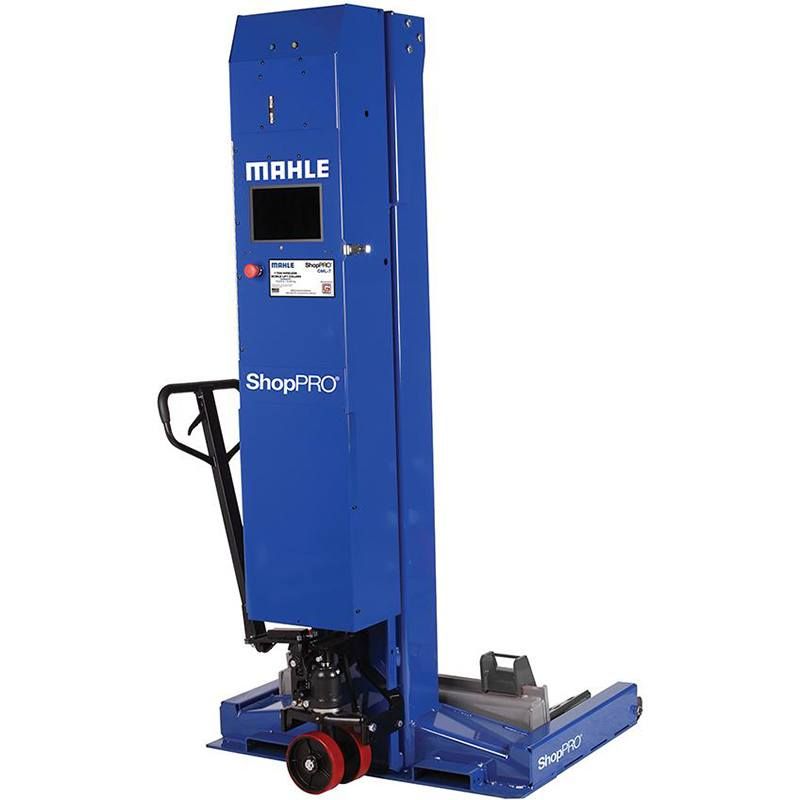

MAHLE CML-9X4 | 38 TON COMMERCIAL VEHICLE MOBILE COLUMN LIFT | WIRELESS (SET OF 4)
In stock
SKU 6010212
$63,131.00
Wireless Mobile Vehicle Column Lifts
Mahle’s patented Gray Wireless Portable Lift System will improve a shop’s overall safety, productivity, and flexibility. The wireless lift system family will be able to safely lift a wide variety of vehicles, allowing technicians to efficiently complete preventative maintenance tasks so you can avoid dealing with major component repair.
Overview
Mahle’s CML-9X4 is about as rugged as they come. This high-quality mobile column lift is capable of lifting 19,000 lbs. per column. That means in total you’ll be able to handle up to 76,000 lbs. But it’s not just a powerhouse. The CML-9X4 also sports an intuitive design. This lift comes equipped with patented wireless smart lift technology, and with its tablet-based touch screen with on-board manuals, it is also very user-friendly. When you need to get some serious lifting done, the CML-9X4 has your back.
Features
- Heavy Duty Lifting Capacity. 14,000 lb. (CML-7) and 19,000 lb. (CML-9) per column capacity options. Wide base available in 19,000 lb. capacity (CML-9W).
- Intelligent. Patented wireless smart lift technology.
- Simple. Tablet-based touch screen with on-board manuals, videos and internet.
- Broad Application. Heavy duty through light duty vehicles.
- Fully Adjustable Carriage. 12" forks supports wheel diameter from 5" to 24.5"
- Patent Pending. Down-stop visual safety system.
- Adjustable. Lift height 69" (1753 mm)
- 24 volt mobile column, with a wide, adjustable carriage for over-sized tire engagement
- Features the industry's original wireless communication system, state of the art touch screen graphic control system, and a patented self-centering adjustable carriage, providing the user with the most reliable and safe lifting environment
- No external wires or cords providing clear and safe access to the undercarriage of the vehicle
- When used at full operating height the user is provided with a lift height of 69 inches of free-and-clear access perfect for preventative maintenance; transmission removal and installation; clutch replacements; and with singe and paired operation make easy work of axle, brake, and wheel work
Specs
| SKU# | 6010212 |
|---|---|
| Lifting Capacity (Each) | 19,000 lb (8,165 kg) |
| Max. Hydraulic Operating Pressure | 2,600 psi (17.9 MPa) |
| Min/Max Wheel Diameter | 4 in (102mm) - No Max |
| Min (2)/Max (4) Lift Height | 32 in / 69 in (813 mm / 1,753 mm) |
| Lift Speed (Max Load) | 60 in/min (1,524 mm/min) |
| Weight | 1,575 lb (714 kg) |
| Height | 88.5 in (2,248 mm) |
| Height at Full Lift | (157.13 in (3,991 mm) |
| Operating Peak Power | 4 HP (3 kW) |
| Operating Voltage | 24 VDC Nominal |
| Charger Voltage Required | 70-130 VAC @50-60 Hz |
