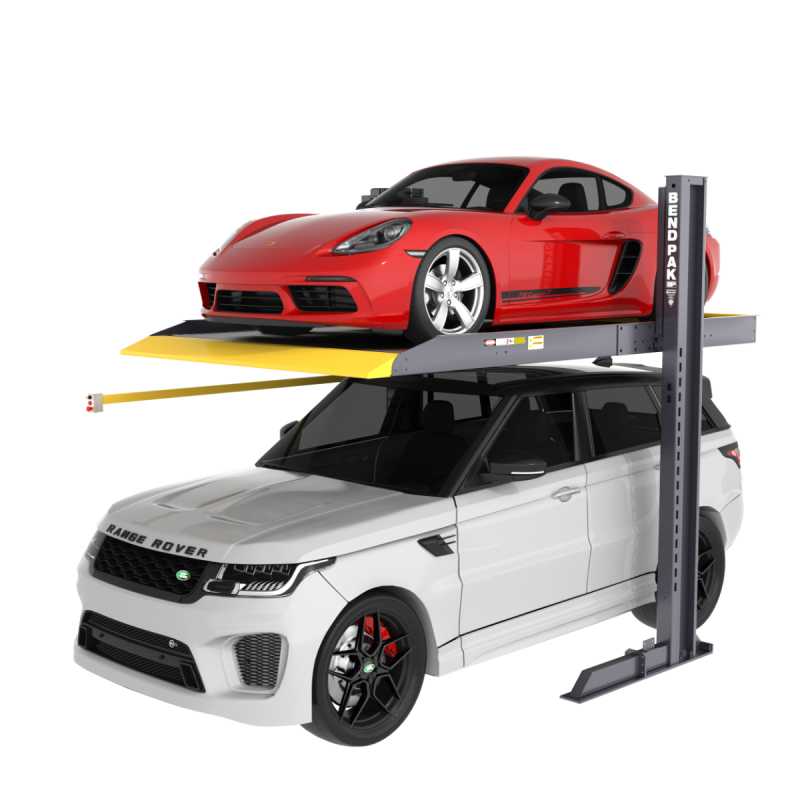

PL-6000DCX
6,000 Lb. Capacity / Two-Post Parking Lift / WIDE / Shared Columns / SPECIAL ORDER
In stock
SKU 5175625
$10,895.00
Introducing the PL-6000DCX, a revolutionary two-post parking lift with a formidable 6,000-lb. lifting capacity. Its cutting-edge design features shared columns to maximize space efficiency, enabling you to fit more units in a compact area. Perfect for both indoor and outdoor installations, the PL-6000DCX offers unparalleled versatility and convenience. This lift is the ultimate solution for efficient and secure vehicle storage.
Overview
BendPak’s PL-6000DCX dual-column parking lift is designed to effortlessly accommodate everything from SUVs and sedans to sports cars. Ideal for long-term parking on the upper level and short-terms parking below, it’s perfect for real estate developers, architects, engineers, automotive dealers, and commercial parking operators. Built to fit in a standard 8-foot parking space, it suits most cars and light trucks and operates seamlessly both indoors and outdoors.
Reduced Operating Costs
The PL-6000DCX uses gravity-driven lowering, thereby eliminating the need for electric motor consumption which substantially reduces operating costs.
Simple Installation
The PL-6000DCX includes a comprehensive manual with floorplan and foundation drawings.
Ganged/Shared Columns
Optimize your space and cut costs with shared columns. This clever design supports multiple installations in tight areas, maximizing your available space and budget.
Reliable Hydraulic Operation
Featuring a single direct-drive hydraulic cylinder, the PL-6000DCX avoids complex screw mechanisms. This ensures greater reliability, smoother operation, lower maintenance costs, and superior performance time after time.
Automatic Safety Device
Robust load-holding devices automatically engage and lock the lift structure as it elevates, preventing sudden free fall in the unlikely event of a suspension component failure. Once at the desired height, the lift will be lowered onto the locks to reduce wear on suspension components, ensuring durability and safety.
Features
- Ganged column design allows multiple installations in minimum space.
- Commercial grade design and construction
- Galvanized and corrugated anti-slip platform
- Freestanding design when ganged two or wide
- Overhead power unit provides smooth and quiet hydraulic operation.
- Designed for installation on typical parking surfaces
- Platform can be stopped at different heights to fit various vehicles and ceiling heights.
- Full width channel-locked center panels protect lower vehicle.
- Wide deck platform accommodates pickups, vans, and cars.
- Single direct-drive hydraulic cylinder
- Automatic safety lock combined with anti-fall device holds platform securely.
- Maintenance free composite carriage bearings
- Electric key switch for security and safety
- Automatic shut-off when operator releases key switch
- Features a rugged and reliable Manual Safety Lock Release
- Hydraulic overloading protection
- Mechanical safety locks are spaced every 4 inches
- 24VAC operator controls
- Automatic locking system during power outage
- Emergency stop button
- Upper limit switch
- Pressure relief valve and pressure compensated flow control valve to ensure safe operation and level lifting.
- Industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups, and wear bands to virtually eliminate fluid bypass.
Specs
| Lifting Capacity per Platform | 6,000 lbs. (2,700 kg) |
|---|---|
| A) Total Width, Outside Edge to Outside Edge | 112 in. (2,847 mm) |
| B) Lift Platform Length | 157 in. (3,990 mm) |
| C) Post Height, *See Note 1 | 131 in. (3,320 mm) |
| D) Post, Center to Center Width | 105.5 in. (2,682 mm) |
| E) Post Support Length | 60.25 in. (1,532 mm) |
| F) Lifting Height | 82.5 in. (2,100 mm) |
| G) Control Column Height | 71 in. (1,805 mm) |
| H) Lift Platform (Usable Width) | 94.5 in. (2,400 mm) |
| I) Side Clearance Min. | 2 in. (50.75 mm) |
| J) Platform to Support | 36.25 in. (918.25 mm) |
| K) Length Overall | 163.5 in. (4,152.5 mm |
| Lifting Time | <50 Seconds |
| Motor | 208-240V, 50/60HZ, 1-Ph., 4 HP, 22 Amps |
| Operating Temperature and Humidity | +41° to +104°F / +5° to +40°C 50% RH |
*Note 1. Balance chain adjustment adds up to 2.25 in. (57 mm) above the post height.
