ATV Lift Kit
ATV Adapter Kit For QuickJack
In stock
SKU 5150006
$1,300.00

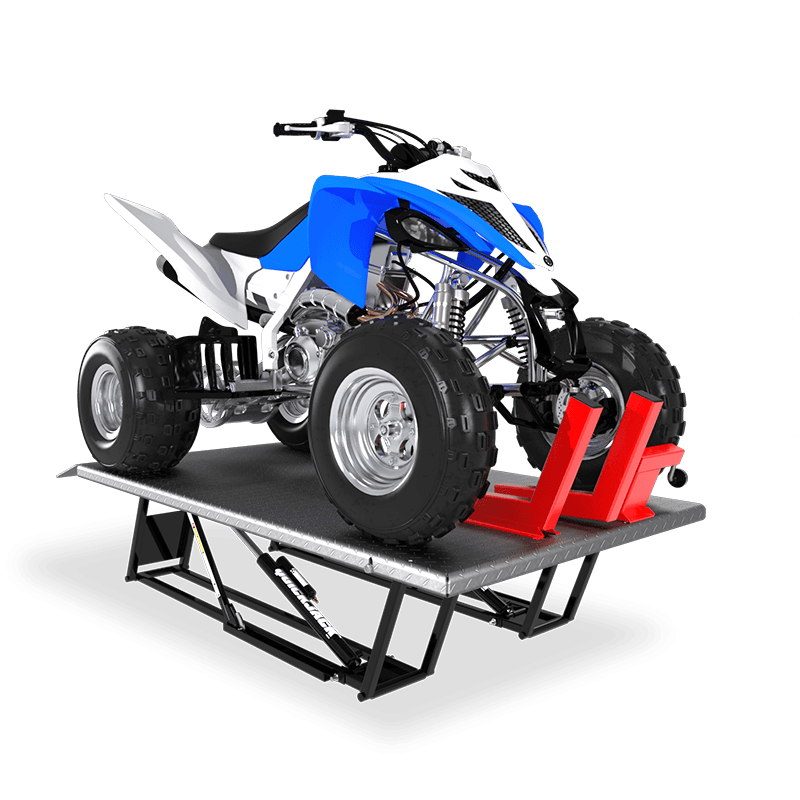

The QuickJack got even better! Now it is possible to work efficiently and safely on ATVs and motorcycles. The QuickJack ATV kit allows you to lift ATVs and motorcycles up to 1,000 pounds so you can finally get to work on maintaining your vehicles. The adapter kit features a cold-formed and tig-welded 6061-T6 aluminum diamond tread platform. It features a slick design that ensures maximum grip for your tires. This kit is the perfect tool to aid you in the washing and detailing of ATVs and motorcycles. It is similar to the QuickJack motorcycle adapter kit, except for the fact that it has been widened to accommodate ATVs.
Overview
Easy To Clean
The platform is completely safe to hose down to get rid of all the dirt and mud which will definitely end up there sooner or later. The adapter kit assembles in mere minutes and lifts in seconds. The kit comes with a fully adjustable front-wheel clamp which keeps hold of the tire by constricting two thick, non-abrasive, chemical-resistant, treaded rubber pads that will never damage your bike. And to make sure this kit lasts as long as possible, it will also not corrode due to weather, moisture, chemicals or heavy use.
Upgradeable
If you are looking to further increase the adapter kit's versatility, be sure to check out the Ranger RML-1100. It is a 1,100 pound capacity jack which is capable of turning your QuickJack into a full-service, all-in-one vehicle lift. It will act as a “rolling bridge jack” for the platform. It does this by safely engaging the frame of your vehicle to allow you to service flats, perform tire swaps, and conduct suspension work with ease.
Setting this all up is a walk in the park. You won’t have to worry about bolts, anchors, or other pieces that require more technical know-how. Simple, custom-fit, hardened-steel axles lock securely over the QuickJack frames to provide support for the lift platform. This kit gives you heavy-duty durability and lightweight portability. And it will only take you about two minutes to get your QuickJack from “stow to go”, and it’s just as easy to glide your ATV or motorcycle over the low-profile ramp.
Recommended RML-1100 ATV Jack sold separately.
Features
- Cold-formed and tig-welded aluminum diamond tread plate
- Rugged steel support axle
- Red, power-coat finish clamp with durable, treaded rubber padding
- Ergonomic crank for easy, non-damaging wheel security
- Heavy-duty tie-down rings
- Recommended RML-1100 ATV Jack sold separately

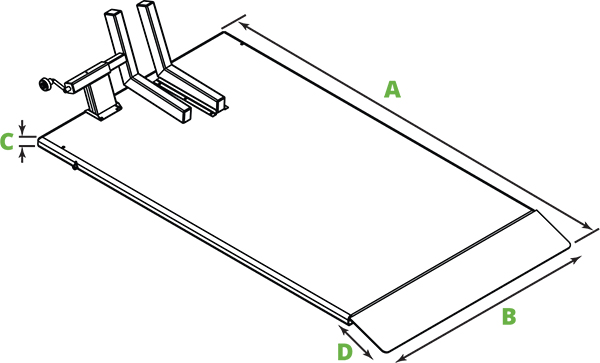

Specs
| A - Platform length: | 88" (2,236 mm) |
|---|---|
| B - Platform width: | 47.25" (1,200 mm) |
| C - Platform height: | 2.25” (57 mm) |
| D - Ramp length: | 9.25" (236 mm) |
| Max. space w/ clamp rubber pads: | 8" (203 mm) |
| Overall length + clamp extension: | 93" (2,362 mm) |
