AC1234-4
Fully Automatic ACS Machine
In stock
SKU 6010227
$8,507.00

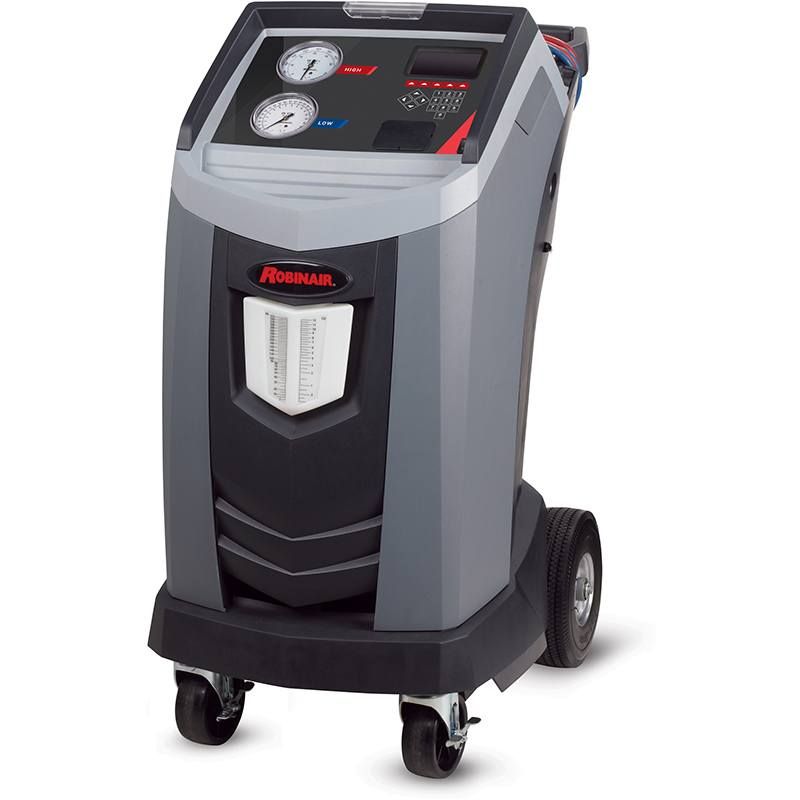

Robinair’s AC1234-4 is a fully automatic ACS machine which meets or exceeds SAE J2927 and J2843 standards for 1234yf recovery.
Overview
This high-quality machine includes an integrated refrigerant identifier which samples the refrigerant in the vehicle’s AC system prior to recovery. This model is extremely accurate and can service both standard and high-voltage vehicle AC systems.
One of the perks of this machine is the fact that it has fully automatic operation. All you have to do is program it for service and leave the machine to do the rest. It also boasts a 98.5% recovery efficiency. The AC1234-4 has a charge accuracy within +/- ½ oz. This machine has many built-in automatic features. The internal tank will refill automatically, so you won’t need to interrupt service. The oil drains will automatically show you how much oil was removed from the system during service, and the automatic air purge will remove the potential of air accumulating in the internal tank. Its programmable vacuum operation will help you get to the necessary vacuum level in any condition quickly. You won’t even need harsh chemicals to flush the AC systems thanks to liquid refrigerant flushing function.
Keep your machine operating with 34724 replacement filters, Robinair high vacuum pump oil and 13172 maintenance kits.
You’ll be able to upgrade your machine with Wi-Fi and Bluetooth capability with the 80211VCI Wireless Master Kit. The kit comes loaded with a USB Wi-Fi/Bluetooth adapter, as well as a software update SD card so you’ll be able to optimize your machine. Once you’re done installing, you can use the included OBDII dongle and the refrigerant capacity database to read VIN, YMME, and automatically pull refrigerant and oil capacities.
Once your machine is upgraded, use the 80212 2-pack Bluetooth temperature probes to read and display multiple vent temperatures. Vent temperatures can be added to before and after service reports, so it’ll be easy for you to confirm a repair and record temperature differences.
For temp probes only, you’ll need to purchase the 80211TMP Wi-Fi/Temperatures Probes Master Kit, which will include the same USB adapter and software update SD as the 80211VCI kit so you can be running the best version of your machine
Integrated refrigerant identifier replacement parts:
- 16913 filter
- 16916 oxygen sensor
- 16106 hose assembly
Features
- Fully automatic operation — program for service, walk away and return when complete
- 98.5% recovery efficiency
- Charge accuracy within +/- ½ oz
- Automatic internal tank refill. No stopping to fill the internal tank during service, or before service
- Automatic oil drain shows how much oil was removed from the system during service
- Automatic air purge removes the potential of air accumulating in the internal tank
- Integrated refrigerant identifier (meets SAE J2927)
- Programmable vacuum operation helps get to the necessary vacuum level in any condition quickly
- System leak test to identify gross leaks in a system
- Liquid refrigerant flushing function can flush A/C systems or individual components using liquid refrigerant instead of harsh chemicals
- Meets and exceeds SAE J2843 requirement for R-1234YF Recover, Recycle and Recharge equipment
Specs
| Dimensions | 107 cm x 56 cm x 80 cm |
|---|---|
| Display | 5 × 9 cm (4.3-in. diag) graphical LCD |
| Filter Life | 150 kg (330 lb) |
| Humidity | 10-50°C (50-122°F), 86% RH non-condensing |
| Gauges | Ø 100 mm (3.9 in.) |
| Maximum pressure | 31 bar (450 PSI) |
| Noise | <70 dB(A) |
| Voltage | 115 VAC, 60 Hz |
| Oil Bottle Capacity | 355 ml (12 oz) |
| Operating Temperature | 10°C to 50°C (50°F to 122°F) |
| Power Consumption | 1380 VA |
| Vacuum Pump | 1.5 CFM (42 L/m) @ 60 Hz |
| Service Hoses | 2.75 m (9 ft) / SAE J2886 |
| Internal cylinder | 30 lb DOT (13.6 kg); 21 lb (9.5 kg) capacity |
| Weight | 82 kg (176 lb) |
