TD01-0000

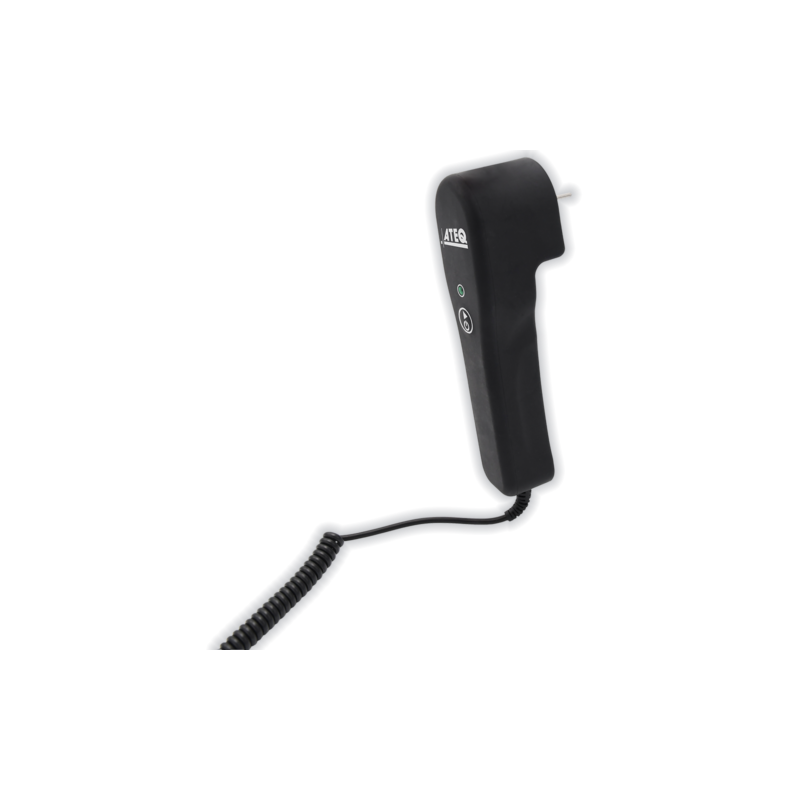

TREAD DEPTH ACCESSORY FOR VT56 AND VT46 TPMS TOOLS
In stock
SKU 6010263
$133.00
ATEQ has developed this high-quality tread depth accessory for VT56 and VT46 to deliver extremely precise measurements.
Overview
The Tire Tread Depth Gauge is an add-on accessory for the CT56 OBD3 Diagnostic TPMS Tool. With this accessory, technicians will be able to measure tire tread depth with extreme accuracy when checking TPMS sensors during routine service and maintenance checks. All it takes is one simple gesture to detect worn tires, tire damage, and indicate poor alignment.
Features
- Easy grip wand with protective rubber jacket)
- Tread depth trigger activation button
- Built-in gauge pin storage compartment with quick release button
- Power LED indicator
- RJ45 connector cable, no Bluetooth pairing is required
- Print results to show customer via VT56 optional thermal printer
- Quickly captures 3 tire measurements (inner, center, outer)
- Measures with an accuracy of +/-1% + 0.0012 inches (0.03 mm)
- Vibrate and sound alerts indicate successful measurement
- Green, yellow, and red color codes on VT56 tool screen indicate wear against the threshold
- Measures 4 to 7 wheels per vehicle
- No battery needed. Connects to the VT56 via RJ pin connector
- Automatic calibration checks before every use
Specs
| Size (H x W x D) | 58" x 2.25" x 2.25" (203mm x 57mm x 57mm) |
|---|---|
| Weight | 0.6lbs. (0.3kg) |
| Screen | 3.5" (89mm) |
| *Warranty | 1 Year |
