Uniweld Type17-30
Rosebud Heating Tip/ copper
In stock
SKU 6010418
$71.00
The TYPE17-30 is built for technicians and fabricators who need greater heating capacity for larger copper tubing and heavier materials. Its higher-capacity flame makes it an excellent choice for commercial HVAC, plumbing, fabrication, repair and industrial heating applications.
Minimum order is for $100.00 at net price of assorted combined products.
Orders for less than $100.00 at net price will be subject to a handling fee as follows:
- $15.00 handling fee for orders less than $50.00 at net price.
- $10.00 handling fee for orders between $50.00 and $99.99 at net price.
This brazing outfit will deliver everything you need to start brazing and welding like a pro in no time.
Overview

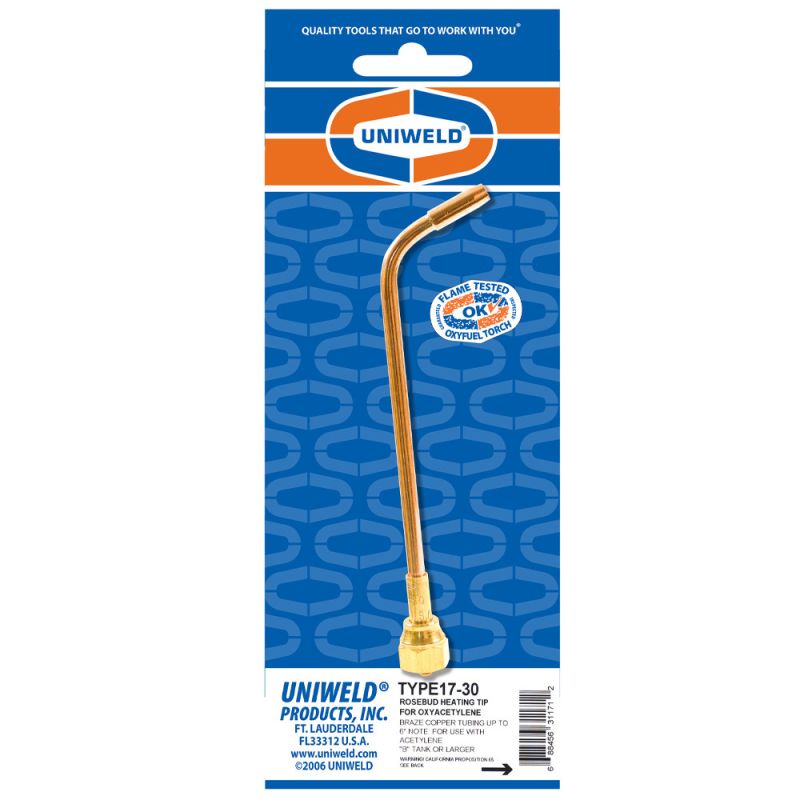

Uniweld TYPE17-30 Rosebud Brazing & Heating Tip #30
The Uniweld TYPE17-30 Rosebud Brazzing & Heating Tip #30 is designed for larger brazing and heating jobs that require increased heat output and broader flame coverage. Built for oxy-acetylene systems, this professional-grade rosebud tip is ideal for brazing large copper tubing, pre-heating heavy materials and straightening metal components.
Compatible with Uniweld 71, WH250, WH550 and WH350 welding handles, the TYPE17-30 delivers reliable performance for HVAC, plumbing, fabrication and industrial maintenance applications. When using the WH350 handle, an F15 Adapter is required.
Note: The TYPE17-30 must be used with a 40 cu. ft. or larger acetylene cylinder.
Features
- High-capacity rosebud tip for larger heating applications
- Produces a broad, even flame for efficient heat distribution
- Ideal for brazing, soldering, pre-heating and straightening
- Designed for oxy-acetylene operation
- Compatible with Uniweld 71, WH250, WH550 and WH350 welding handles
- Requires F15 Adapter when used with the WH350 handle
- Brazes copper tubing from 1/2" to 6"
- Heavy-duty brass construction for long service life
Features
- Brazing large copper tubing
- Heavy-duty heating
- Pre-heating metal
- Metal straightening
- HVAC installation and repair
- Commercial plumbing
- Industrial fabrication
- Maintenance and repair work
Specs
| Part Number | TYPE17-30 |
|---|---|
| Tip Style | Rosebud Heating Tip |
| Overall Length | 7″ |
| Acetylene Consumption | 15–30 SCFH |
| Oxygen Pressure | 10–20 PSIG |
| Acetylene Pressure | 8–12 PSIG |
| Copper Tubing Capacity | 1/2″ to 6″ |
| Compatible Handles | Uniweld 71, WH250, WH550, WH350* |
| Adapter Required | F15 Adapter required when used with WH350 handle |
| Fuel Gas | Oxy-Acetylene |
| Minimum Cylinder Size | 40 cu. ft. acetylene cylinder |
