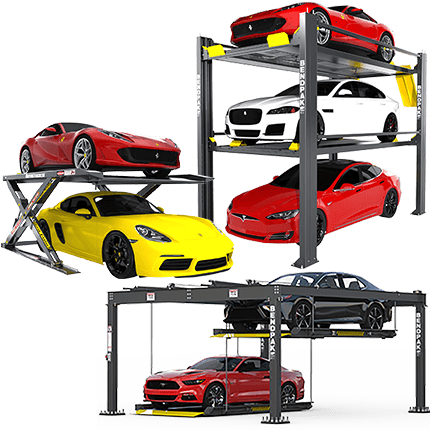

Make better use of the space you already have.
Explore parking lift options for residential garages,
commercial facilities and vehicle collections with
configurations capable of storing two, three, four
or even six vehicles.
Increase Parking Capacity With the Space You Already Have
Wrenchers' parking lifts from BendPak and Autostacker
offer a solution for increasing parking storage without
simply expanding the footprint of your garage or facility.
Transformable and versatile parking lifts can help
space-challenged shops, garages and parking facilities
use available vertical space to increase vehicle
storage capacity.
Since finding ways to use existing space can be easier
than constructing a larger garage, Wrenchers offers
parking lift configurations designed to make use of
room that might otherwise go unused.
Wrenchers' Space Program
Match Your Parking Lift to Your Storage Needs
Depending on shop size, Wrenchers parking lift options
can increase parking storage to two-car, three-car,
four-car or six-car capacity. These configurations can
serve both commercial parking sites and home garages.
2 Cars
A6S, A6W and PL-7000DLX
3 Cars
HD-973P and HD-973PX
4 Cars
PL-6KDT and PL-6KDTX
6 Cars
PL-6KT
Parking Lift Basics
Parking Lift vs. an Ordinary Four-Post Lift
Both a parking lift and a conventional four-post
lift with open centers and runways can store vehicles.
Parking lifts, however, generally focus primarily
on organizing vehicles while consuming minimal
shop and floor space.
Depending on the configuration, that can mean one
vehicle above another, three vehicles stacked
vertically, or multiple vehicles parked alongside
each other on an upper level.
Multi-Vehicle Storage
Double & Triple-Wide Parking Lifts
Placing one car above another can be an effective
way to store two vehicles. Larger areas with greater
storage needs can benefit from parking lifts designed
to hold four or six vehicles.
Many multi-wide configurations use separate upper
platforms, allowing an individual platform to be
raised or lowered without changing the position
of vehicles on the other upper platforms.
Any vehicle positioned directly below the platform
being lowered will need to be removed first.
Multi-wide and triple-high parking lifts utilize
four-post construction due to the added loads
involved in storing more than two vehicles.
Why Parking Lifts?
6 Benefits of a Wrenchers Parking Lift
01
Uses existing area to increase parking capacity
and can increase revenue for paid parking.
02
Installation time is quick compared with
new construction.
03
Typically more affordable than new construction
costs.
04
Can eliminate the cost of storing automobiles
at an off-site location.
05
Indoor parking lift installations can help protect
stored vehicles from theft or weather.
06
Vehicles can remain stored at a central location
instead of blocks away.
3×
Measure Length,
Width & Height
Measure Before You Choose
How Do Things Measure Up?
Check and measure your available shop or parking
structure and compare those measurements with the
parking lift's overall length, width and maximum
rise. Importantly, add your vehicle's overall height
to the maximum rise dimension when evaluating
floor-to-ceiling clearance.
Parking Lift Guide
Wrenchers Parking Lifts From Autostacker & BendPak
Compare parking lift configurations for compact
two-car storage, wider vehicle access, four-car
storage, six-car storage and tri-level applications.
The A6S Autostacker is designed as a fully
collapsible and compact parking lift. When
lowered, the upper parking platform folds
down to just above ground level.
Drive onto the platform, raise the vehicle
with the push of a button and a second car
can be parked directly beneath, creating
two parking spaces from one.
A6S Features & Specs
Max Rise: 81.25"
Overall Width: 103"
Ramp Height Entry: 2"
Length: 143"
Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
Automatic safety locks engage at five different parking heights
Dual, direct-drive hydraulic lifting cylinders
Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
Full-width, straight-through axles increase overall stability and tracking through the vertical travel range
Extra-wide, heavy-duty steel scissor arms with cross member bracing enhance stability
Unique clevis-design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
Patented asymmetric scissor arms provide greater underside door clearance
Patented Door-sentry car door protectors help protect against accidental scratches or door dings
Minimal footprint fits a typical parking space
2-Car Storage • Extra Wide
Autostacker A6W
Fully Collapsible • 6,000-lb. Capacity •
8" Wider Than the A6S
The A6W provides the benefits of the A6S
with an eight-inch wider configuration
totaling 111 inches across.
The additional width provides more room
alongside the vehicle and can provide
easier access for vehicles with wider
track widths while maintaining the
collapsible two-car parking concept.
A6W Features & Specs
Max Rise: 81.25"
Width: 111"
Ramp Height Entry: 2"
Length: 144"
Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
Key-switch disconnect fully disables operation for enhanced security
Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
Galvanized steel platform
Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
Automatic safety locks engage at five different parking heights
Dual, direct-drive hydraulic lifting cylinders
Dependable hydraulic circuit that provides precise, equalized lifting
Variable height parking accommodates a wide range of vehicle and ceiling heights
Patented asymmetric scissor arms provide greater underside door clearance
Space-saving design for commercial or residential applications
2-Car Storage • Two-Post Parking Lift
BendPak PL-7000DLX
7,000-lb. Capacity • Deluxe Parking Lift
Special Order
The PL-7000DLX is the deluxe version of
the PL-7000XR. It features a longer and
wider approach ramp and a galvanized
diamond-plate platform.
Lengthened and reinforced front legs
reduce tension load on the front anchors,
with additional enhancements incorporated
into the lift.
PL-7000DLX Features & Specs
Max Rise: 85"
Width: 98"
Length: 131"
Durable construction for maximum stability
Full-width and extended approach ramp
Bolt-on and strengthened diamond-plate center panels
Lengthened and reinforced front leg lessens tension load on front anchors
Minimum footprint allows multiple installations in limited space
Independent lifting structures allow for staggered installation
Power unit and controls integrated within lift structure
Freestanding design reduces tax and permit liabilities in most counties
Wide-deck platform accommodates pickups, vans and cars
Dual hydraulic cylinders and heavy-duty lifting chain
Wide base plate mounts directly on grade, even on asphalt
Optional audible/visual descent alarm available
4-Car Storage • Double Wide
BendPak PL-6KDT
6,000-lb. Capacity Per Platform •
Multi-Platform Parking Lift
Special Order
The PL-6KDT stores up to four vehicles,
while each lifting platform can hold
vehicles separately weighing up to
6,000 lbs.
With no columns positioned between the
two parking platforms, the lift has an
overall width of approximately 211 inches.
Its multi-platform design allows you to
raise or lower only the platform you need
to access.
PL-6KDT Features & Specs
Max Rise: 89"
Width: 210.75"
Height: 122.75"
Rugged I-beam and C-channel construction
Built-in wheel stops
Wide base plate for maximum stability
Superstructure features durable powder-coat finish
Dual hydraulic cylinders with heavy-duty steel lifting cable
Heavy-duty steel construction
Reliable electric-hydraulic power system
Full-width platform to keep bottom vehicles protected
Features heavy-duty 3/8" aircraft cable
Rugged 1.25" roller axles
Multi-position safety locks in each column
Push-button pneumatic safety release
4-Car Storage • Extended Width
BendPak PL-6KDTX
6,000-lb. Capacity • Tandem •
Independent Platforms
The PL-6KDTX provides nearly 40 inches
of additional overall width compared
with the PL-6KDT.
At approximately 250 inches wide, the
configuration provides additional room
for larger and wider vehicles. The posts
are positioned farther from the platforms,
providing more drive-through clearance
than the PL-6KDT.
PL-6KDTX Features & Specs
Max Rise: 89"
Width: 250"
Height: 122.75"
Extra-wide configuration
Rugged I-beam and C-channel construction
Wide base plate for maximum stability
Front and rear wheel chocks
Dual hydraulic cylinders with heavy-duty steel lifting cable
Full-width platform to keep bottom vehicles protected
Oversized sheave diameter reduces cable fatigue
Features heavy-duty 3/8" aircraft cable
Rugged 1.25" roller axles
Multi-position safety locks in each column
Push-button pneumatic safety release
Independent backup slack-cable safety latches
6-Car Storage • Triple Wide
BendPak PL-6KT
6,000-lb. Capacity Per Position •
Triple Parking Lift
Special Order
The PL-6KT triple parking lift provides
storage for six vehicles, with three
vehicles positioned at ground level and
three vehicles raised above.
Each platform provides a 6,000-lb.
capacity.
PL-6KT Features & Specs
Max Rise: 89"
Width: 308"
Height: 123.75"
Rugged I-beam and C-channel construction
Built-in wheel stops
Wide base plate for maximum stability
Superstructure features durable powder-coat finish
Dual hydraulic cylinders with heavy-duty steel lifting cable
Oversized sheave diameter reduces cable fatigue
Features heavy-duty 3/8" aircraft cable
Rugged 1.25" roller axles
Push-button pneumatic safety release
Independent backup slack-cable safety latches
3-Car Storage • Tri-Level
BendPak HD-973P
9,000-lb. Lower Deck •
7,000-lb. Upper Deck
Special Order
For facilities with extended ceiling height,
the HD-973P provides tri-level storage for
three vehicles.
The upper deck has a 7,000-lb. capacity
while the lower deck has a 9,000-lb.
capacity. Independent platforms allow
platforms and vehicles to be positioned
at different heights.
Wheels-free access is optionally available
by adding an RJ-45LP or RJ-45W 4,500-lb.
capacity rolling bridge jack.
HD-973P Features & Specs
Max Rise: 139.5" Top Platform / 70" Bottom Platform
The HD-973PX extends the tri-level parking
concept for applications with greater
available ceiling height.
Compared with the HD-973P, the HD-973PX
provides additional overall height and
runway length for longer and taller vehicles.
The upper deck has a 7,000-lb. capacity
while the lower deck handles up to
9,000 lbs.
HD-973PX Features & Specs
Max Rise: 151.5" Top Platform / 82.25" Bottom Platform
Did you know that Wrenchers’ Parking Lifts from BendPak and Autostacker are a clever solution to increasing your parking storage? It’s a simple question of time and space. We don’t mean to delve into an Albert Einstein physics exercise, but are simply providing a method to expand your car storage capability efficiently. Transformable and versatile Parking Lifts can be solutions to that space challenged shop.
Since it’s much easier to find space alternatives with what you do have as compared to constructing a larger garage, Wrenchers offers a diverse list of parking lifts that synergize available room to increase parking storage capacity. Or better yet, a way to utilize the space that you are not using.
Wrenchers Parking Lifts-Great Choices to INCREASE CAR STORAGE for:
Public Parking Structure
Office Building
Municipal Building
Home Garage
Sport Sedans
Muscle Car collections
Sports Cars
Exotics
Wrenchers’ Space Program
Depending on shop size you can increase your parking storage to a 2-car capacity, 3-car capacity, 4-car capacity, or 6-car capacity. And Wrenchers’ Parking Lift options work well for both commercial parking sites as well as your home garage. With facility costs fleeting; valet, parking garages, shops, airports and more can benefit from increasing capacity atop concrete and within walls that already exists.
Wrenchers Offers BEST PARKING LIFTS for Car Storage from Autostacker and BendPak
INCREASE Car Storage up to a HALF-DOZEN CARS on ONE Parking Lift!
What’s the difference between a Parking Lift and an ordinary Four-Post Lift?
To discover some of the ways a Parking Lift functions, think of the basic operating system of a vending machine. This not only means just one vehicle above another (2 car), but if you have the scope, a Parking Lift with 3 cars stacked vertically or even a second level above with vehicles parked alongside each other in a row. True, both a Parking Lift and conventional Four-Post lift (i.e. open centers with runways) can store vehicles. But Parking Lifts generally feature as their primary function a way to organize vehicles, while consuming minimal shop and floor space.
Double and Triple-Wide Parking Lifts Provide Many Car Storage Benefits
Placing 1 car above another for many garages is a great solution to store 2 cars. Larger shop areas with greater needs can benefit from Parking Lifts that hold even more than 2 cars. For ease of use, most 4 or 6 vehicle multi-wide Parking Lifts are often designed with separate platforms for each vehicle that it stores above ground.
Therefore, the respective car parked above on a double or triple-wide Parking Lift can be separately brought down to ground level (or raised into upper position) without disturbing the placement of the other vehicles stored at the top level. Obviously, any car directly below will need to be removed first.
*Note that multi-wide or triple-high Parking Lifts do utilize 4 post construction due to the added load factors to hold more than 2 vehicles.
6 Easy Benefits of a Wrenchers’ Parking Lift:
Uses existing area to increase parking capacity and increase revenue for paid parking
Installation time is quick compared to new construction
Typically more affordable than new construction costs, saves money
Eliminates off-site automobile parking costs
Installing a Parking Lift inside your shop helps protect vehicles from theft or weather
Vehicles can be stored within a hub location, instead of blocks away
How Do Things Measure UP?
Remember to check and measure your available shop or parking structure setting and match to the respective Parking Lift model’s overall dimensions and rise (length, width, and max rise). And very importantly, add your vehicle’s overall height to the “max rise dimension”. This all means comparing ceiling to floor and across the concrete too. All Parking Lift model dimensions are available online.
Wrenchers’ Parking Lifts from Autostacker and BendPak FROM THE GROUND UP, BEST Vehicle Parking and Storage Solutions
Wrenchers’ A6S Autostacker, 6,000 lb. capacity and it’s FULLY COLLAPSIBLE
Standard Width, Scissor Lift, Multi-Platform Parking Lift, Car Stacker
Looking for a Parking Lift that is fully collapsible and very compact when not in use? Wrenchers’ A6S Autostacker Parking Lifts functions much like a folding table or chair, that is that the top parking platform can be folded lower to just-above-the ground. With the A6S Autostacker down, simply pull onto and park on the platform or remove the vehicle as needed. The A6S Autostacker can then be raised with a push of a button and a second car can be parked directly beneath creating 2 parking spaces from 1. The design utilizes Scissor Legs to raise and lower the upper vehicle platform.
A6S Autostacker Features and Specs
Max Rise. 81.25”
Overall Width 103”
Ramp Height Entry 2”
Length 143”
Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
Automatic safety locks engage at five different parking heights
Dual, direct‐drive hydraulic lifting cylinders
Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
Patented asymmetric scissor arms provide greater underside door clearance
Patented Door‐sentry car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings
Minimal footprint fits a typical parking space
Wrenchers’ A6W Autostacker, fully collapsible, 6,000 lb. capacity AND 8” wider than the A6S
Are you looking to widen your horizons? How does 8” wider sound in a fully collapsible Parking Lift? With Wrenchers A6W you receive all of the benefits of the A6S, but with an 8” wider platform that totals 111” across. This means more room to stand alongside the vehicle’s door as you are entering or exiting. Or easier access for cars with wider track widths. Wrenchers Autostacker (A6W) gives you a fully collapsible parking lift to double your single vehicle parking capacity, just like the standard A6S does. Whether you are looking to increase parking capacity in your own garage or in a commercial setting, Wrenchers can raise your vehicle parking pleasure.
Extra-wide, Scissor Lift, Multi-Platform Parking Lift, Car Stacker
Max Rise. 81.25”
Width 111”
Ramp Height Entry 2”
Length 144”
Length 144”
Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
Key‐switch disconnect fully disables operation for enhanced security
Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
galvanized steel platform
galvanized steel platform
Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
Automatic safety locks engage at five different parking heights
Dual, direct‐drive hydraulic lifting cylinders
Dependable hydraulic circuit that provides precise, equalized lifting
Variable height parking accommodates a wide range of vehicle and ceiling heights
Patented asymmetric scissor arms provide greater underside door clearance
Space‐saving design is perfect for commercial or residential applications
Wrenchers’ BendPak PL-7000DLX, 7,000 lb. Capacity, Two-Post Parking Lift/Deluxe/SPECIAL ORDER
Do you often opt for the model with the heftier strength over the others? Maybe you’re the type who prefers trucks with heavy duty suspensions and up-sized brakes for the added margin? The PL-7000DLX is the deluxe version of the PL-7000XR. The approach ramp is longer and wider, a galvanized diamond-plate platform replaces the powder coat on the XR. Lengthened and reinforced front legs reduce tension load on front anchors and extra enhancements are built in within the lift.
BendPak PL-7000DLX Features and Specs
Max Rise. 85”
Width 98”
Length 131”
Durable construction for maximum stability
Full-width and extended approach ramp
Bolt-on and strengthened diamond-plate center panels
Lengthened and reinforced front leg lessens tension load on front anchors
Minimum footprint allows multiple installations in limited space
Independent lifting structures allows for staggered installation
Power-unit and controls integrated within lift structure
Freestanding design reduces tax and permit liabilities in most counties
Wide-deck platform accommodates pickups, vans and cars
Dual hydraulic cylinders and heavy-duty lifting chain
Wide-base plate mounts directly on grade, even on asphalt
There’s room for four with Wrenchers PL-6KDT. The PL-6KDT stores up to 4 vehicles while each of the lifting platforms will hold vehicles separately weighing up to 6,000 lbs. No columns set between the two parking platforms, and the footprint is down to a just 211” overall width. Since by design this lift is Multi-Platform, it features the benefit of lowering or raising only the platform you need to access. With a PL-6KDT you can organize your 4 favorite cars all at once.
BendPak PL-6KDT Features and Specs
Max Rise. 89”
Width 210.75”
Height 122.75”
Rugged I-beam and C-channel construction
Built-in wheel stops
Wide base-plate for maximum stability
Superstructure features durable powder-coat finish
Dual hydraulic cylinders with heavy-duty steel lifting cable
Heavy-duty steel construction
Reliable electric-hydraulic power system
Full-width platform to keep bottom vehicles protected
Do you like the PL-6KDT, but just wish it were a little wider to fit your vehicles? How’s almost 40” more width sound? The PL-6KDTX tandem Parking Lift answers that request. With a total width that is just over 19’, you will have plenty of room to park bigger and wider vehicles. Since the lifting capacity of each platform is 6,000 lbs. you will be able to easily lift vehicles as hefty as most half-ton crew cab pickups.
This extended-width PL-6KDTX platform parking lift converts any two-car parking space into a four-car storage facility! The PL-6KDTX features posts that are extended away from the platforms by about 16.5" giving you more drive-through clearance than the PL-6KDT.
Max Rise. 89”
Width 250”
Height 122.75”
Extra-wide
Rugged I-beam and C-channel construction
Wide base-plate for maximum stability
Front and rear wheel chocks
Dual hydraulic cylinders with heavy-duty steel lifting cable
Full-width platform to keep bottom vehicles protected
Oversized sheave diameter reduces cable fatigue
Features heavy-duty 3/8" aircraft cable
Rugged 1.25" roller axles
Multi-position safety locks in each column
Push-button pneumatic safety release
Independent backup slack-cable safety latches
Wrenchers’ BendPak PL-6KT Triple, Times Two, Parking Lift, Stores 6 CARS / 6,000lb. Capacity per position/SPECIAL ORDER
Turn your 3-car garage into a 6-car mansion with Wrenchers’ PL-6KT TRIPLE PARKING LIFT. With 3 cars at ground level and 3 car raised, you will have room for 6 cool cars. This Parking lift also boasts a 6,000-lb. capacity per platform.
Turn your 3-car garage into a 6-car mansion with Wrenchers’ PL-6KT TRIPLE PARKING LIFT. With 3 cars at ground level and 3 car raised, you will have room for 6 cool cars. This Parking lift also boasts a 6,000-lb. capacity per platform.
Max Rise 89”
Width 308”
Height 123.75”
Rugged I-beam and C-channel construction
Built-in wheel stops
Wide base-plate for maximum stability
Superstructure features durable powder-coat finish
Dual hydraulic cylinders with heavy-duty steel lifting cable
Dual hydraulic cylinders with heavy-duty steel lifting cable
Dual hydraulic cylinders with heavy-duty steel lifting cable
Oversized sheave diameter reduces cable fatigue
Features heavy-duty 3/8" aircraft cable
Rugged 1.25" roller axles
Push-button pneumatic safety release
Independent backup slack-cable safety latches
Wrenchers’ BendPak HD-973P Style: Tri-Level Parking Lift / 9,000 and 7,000 Lb. Capacity/Tri-Level Parking Lift/SPECIAL ORDER
Want to bring parking to new heights? For shops with extended ceilings, Wrenchers can solve your car storage needs with an extra tall parking lift that vertically holds 3 vehicles. The HD-973P, is capable of storing a 7,000 lb. vehicle atop while a 9,000 lb. vehicle can rest in the center position. Plus, with its independent platforms you can position platforms and park vehicles at the height of your choice.
AND OPTIONAL Wheels-Free-Access is possible with an HD-973P Parking Lift
Wheels-free access is optionally available on the HD-973P Parking Lift. Simply order your lift with an RJ-45LP or RJ-45W to gain a 4,500 lb. capacity Rolling Bridge jack. With this optional accessory you can raise the center positioned vehicle at the front axle or rear axle to provide undercar access.
Automatic safety locks combined with redundant anti-fall devices
Independent backup slack-cable safety latches
Push-button pneumatic safety release.
Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
Optional drive-thru ramps available
Optional 4,500-lb. air-hydraulic rolling jacks available
Powerful hydraulic cylinders
Wrenchers’ BendPak HD-973PX 9,000 and 7,000 Lb. Capacity/Tri-Level Parking Lift/EXTENDED Height Lift/SPECIAL ORDER
Raise them higher with the BendPak HD-973PX Tri-Level available from Wrenchers. This four-post Parking Lift holds up to three vehicles atop one space. With an extended length and taller rise compared to the HD-973P, the HD-973PX has even more room for your tallest needs
With an additional 84” of overall height compared to the HD-973P parking lift, the HD-973PX fills a TALL order. This extra height, along with the additional 10” of runway length, gives you the perfect amount of space to fit longer and taller vehicles. With the topmost platform’s weight capacity sitting at a hefty 7,000 lbs. and the lower deck handling up to 9,000 lbs. All you need is the ceiling height and 3 cars and you’re ready to move up.
Max Rise 151.5” Top Platform, 82.25” Bottom Platform
