What to know When Buying a Four Post Car Lift
Wrenchers offers Dozens of Four-Post Auto Lifts, One is Right for Your Garage
Your automotive shop is a busy place. Years of hard work has your business thriving within your community. Those are all good things. All that you need now is more room, more undercar access, and a way to put two cars where one currently is. That’s actually a simple challenge and Wrenchers can easily solve that with a helpful four-post car lift in your shop or garage. As a matter of fact, we have at least 24 solutions for that dilemma. And they are all affordable. If you need a four-post auto lift to raise 7,000 lbs. or have the need to raise vehicles that scale all the way up to 40,000 lbs., Wrenchers has the ways and the means.
- How much vehicle weight do you plan to lift?
- Do you plan to use a four-post auto lift for vehicle repairs or vehicle storage?
- How much room do you have including the surrounding area, and garage door clearance (open and closed)?
- Is there access to nearby electrical and air power?
- Is concrete in good condition, proper thickness, cured for at least 28 days?
It’s Worth the Weight
The amount of weight lifting capacity that a four-post car lift has is one of the features that differentiates one four-post car lift to another. To choose how much weight capacity your four-post auto lift will need, begin by reviewing the vehicle weights that you typically work on. If your shop typically repairs passenger cars, SUV’s, and ½-ton pickups, a lift with a 7,000 lbs. lifting capacity may serve your shop well. This is because most full-size commuter vehicles weigh less than 5,000 lbs., typical light pickups weigh just over 5,000 lbs., and some larger SUV’s may weigh near 6,000 lbs. Classic 1960’s muscle cars typically weigh from 3,200 lbs. to 4,200 lbs. One-ton crew cabs and work vans typically weigh much more.
Need additional choices? Wrenchers has more than 24 four-post vehicle lift models, with weight capacities that range from 7,000 lbs. to 40,000 lbs. of lifting capacity.
Twice the Fun, Twice the Storage
A four-post car lift can also serve double-duty as either a service rack or a platform to store vehicles up and out of the way.
With a four-post car lift in your garage or shop you will be able to perform under-chassis repairs, troubleshoot, or even detail the undercarriage of your muscle car. Or if your garage is going to have a lot of foot traffic, you can raise that pristine classic car up and out of the way for safe-keeping until the calm returns.
If you need wheels-free access (as found on a two-post auto lift) for repairs, check out Wrenchers accessories section for a helpful rolling bridge jack model. A rolling bridge jack rests across both runways, and will act to support jacks to raise the vehicle up to allow wheels to be removed.
At Wrenchers we thrive on providing auto lift solutions. That is just one of the reasons we offer four-post vehicle lifts from more than one brand.
Expand Your Horizons with a Dual Platform Four-Post Car Lift
If you’d like to widen your opportunities, Wrenchers also offers four-post lifts that will raise two cars positioned side-by-side, while leaving parking for two positioned side-by-side below. These are BendPak’s HD-9SW and HD-9SWX, otherwise known as Dual-Platform, Four-Post vehicle lifts with 9,000 lifting capacity. The HD-9SWX rises 12” higher than the HD-9SW. Both models measure just over 200” in width. That means you net four times the fun with four cars neatly stored away. Think of these two models as large-closet organizers for car guys.
HD-9SW
HD-9SWX
Start by Taking Measurements, Just Skip the Curtains Part
All you need is a tape measure. And if you have the room, Wrenchers has the lift. Or you might already have a primary lift in your shop and could benefit from another. The good news here is that you can quickly find out if the lift you like will fit the space you have. With the brand and model number of the lift you are considering, simply go to the brands website and link to the specific page or user’s manual. Once you have begun to narrow down your list of candidates, you can review the dimensions of the models from the website.
*Remember to allow for the needed height that your vehicle’s roof will require (for clearance) above the lift’s actual height!
Here’s a Quick Numeric Example Using HD-9 Four-Post Vehicle Lift Dimensions: HD-9, four post lift, 88” height, 110.25” wide, 200” length, 9,000 lb. lifting capacity
What’s Your Approach?
Important considerations when choosing a new four-post lift includes measuring the available pull-in length (approach) into your shop, the width (between garage door openings and/or walls) and the height (floor to unobstructed ceiling).
It is also important to note the area coming into the garage (outside the garage door) to make sure there is plenty of loading room. Remember, sometimes vehicles arrive disabled and towed on a trailer or flatbed rig. Or other times a vehicle may need to be pushed off of the lift, to free the area up while waiting for parts and also to allow the lift to be used for another vehicle. Think of how the lift will be used with busy day-to-day operations.
It Starts at the Bottom
Everything best rests on a strong foundation and that statement is true for four-post car lifts too. But the good news is that most slabs will serve the purpose well. The necessary specs for each lift are available by looking up the lift’s brand and model number online.

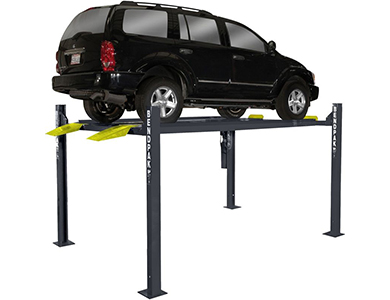

Here is an example of an HD-7 four-post lift’s requirements with a lifting capacity of 7,000 lbs. Be sure to review the accompanying specs for the model you are interested in and/or if anchors are recommended.
- Depth: 4.25 in (108 mm) thick
- Concrete must be level with no more than a 3 percent slope
- Concrete must be level with no more than a 3 percent slope
- Cured: 28 days, minimum
Wrenchers Can Store Your Boat with Trailer Too; on a Four Post Boat Lift!
With BendPak’s longer, extended height HD-7500BLX four-post boat lift from Wrenchers, you can create more room in your garage. With a properly sized boat with trailer placed on the HD-7500BLX four-post boat lift, you can have a vehicle parked underneath. So if you have the vertical space, you can now have your boat inside your garage through the winter and your car underneath and available year round.
Wrenchers Lets You Have it Your Way
Looking for more helpful features? Wrenchers has a large selection of accessories to custom equip your lift to deliver the highest level of benefits.
- Portable Wheel Kit for HD-7 and HD-9 (allows the lift to be rolled to another suitable location in the shop)
- Rolling Oil Drain Pan
- Plastic Drip Tray (to prevent upper vehicles from leaking onto vehicles below)
- Sliding Jack Tray
- Air Line Kit
- Aluminum or Steel Ramps
- Aluminum Deck
- Rolling Bridge Jack
What to Look for to Choose the Best Four Post Car Lift
- Plenty of Weight Capacity for What You Work On
- Four Post Lift Fits Your Garage
- Priced Right
- Wrenchers can provide contacts for local installation
- Wrenchers Provides Free Shipping
- Contact Wrenchers to Purchase
Wrenchers offers the right sized four-post vehicle lift to allow easier access to under-car components and also to improve job quality. Four-post car lifts can also help improve troubleshooting oil leaks, providing more room for replacing exhaust components, easier to chassis parts, and help reduce labor times against the clock. Whether it is a BendPak, GrandPrix, or Dannmar you can purchase the best four-post vehicle lift that matches your needs at Wrenchers.
